SKU: GALXS08-FLURO

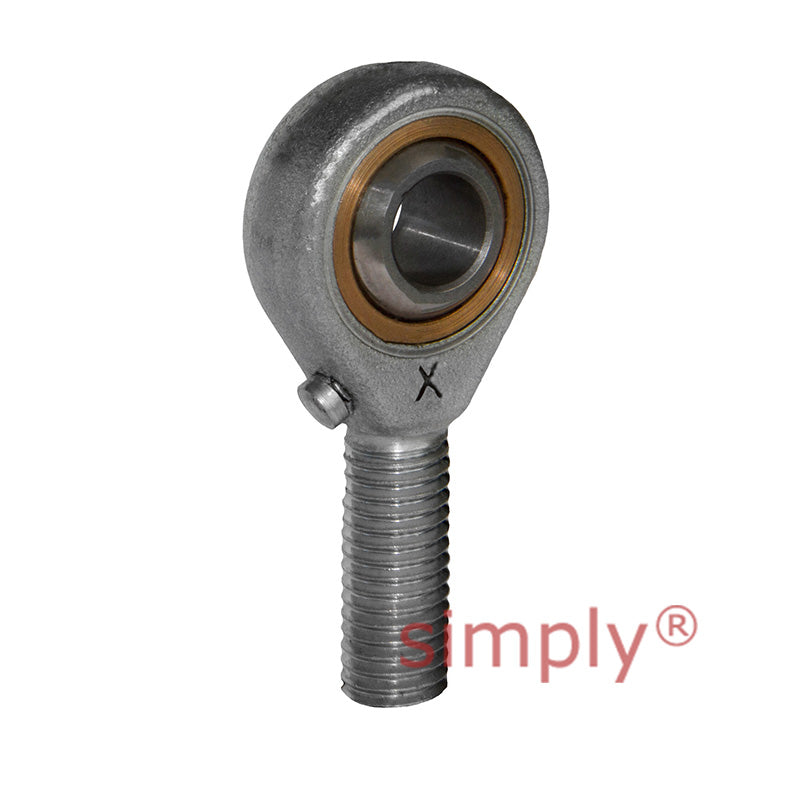

Fluro GALXS08 Left Hand Steel / Bronze Male Plain Rod End M8 Thread
Fluro GALXS08 Left Hand Steel / Bronze Male Plain Rod End M8 Thread
Out of stock
Share this product
Description
Description
Fluro GAXS Series Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from heat-treated steel, zinc plated and regreasable through a grease nipple in housing. Especially suitable for high pressure and tension loads.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 8mm
- Inside Diameter:
- 8mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 8mm |
|---|---|
| B | 12mm |
| M | 9mm |
| A | 24mm |
| F | 42mm |
| L | 54mm |
| O | 10.4mm |
| Thread Size G | M8 |
| GL | 25mm |
| Static Load Co | 19.5kN |
| Dynamic Load | 7.1kN |
| Limiting Speed | 1200rev/min |
| Approx weight | 0.033kg |
