SKU: GALRS16-FLURO

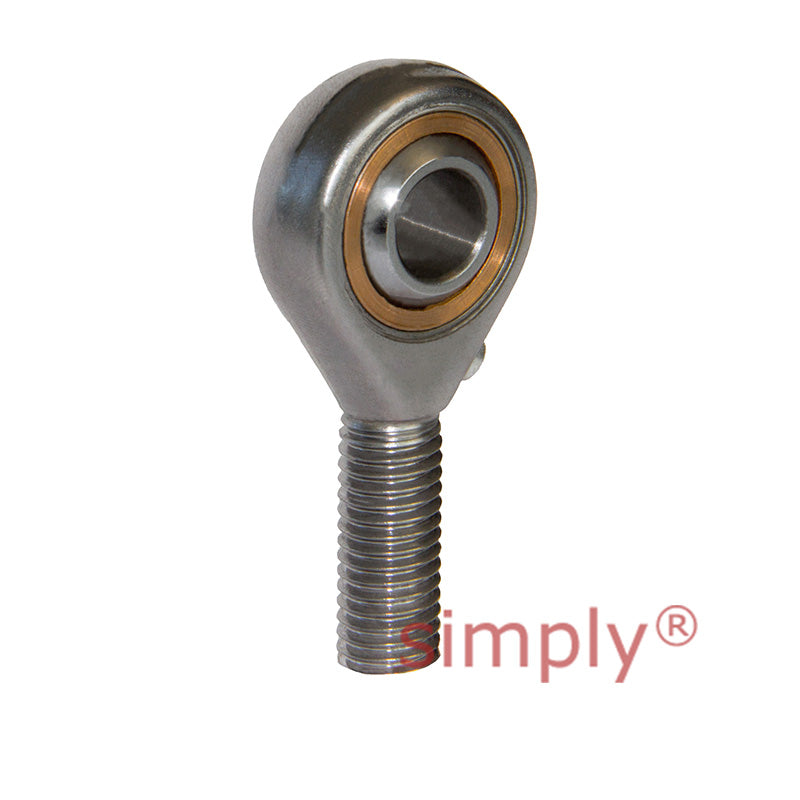

Fluro GALRS16 Left Hand Stainless Steel / Bronze Male Plain Rod End M16 Thread
Fluro GALRS16 Left Hand Stainless Steel / Bronze Male Plain Rod End M16 Thread
Out of stock
Share this product
Description
Description
Fluro GARS Series Stainless Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 16mm
- Inside Diameter:
- 16mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 16mm |
|---|---|
| B | 21mm |
| M | 15mm |
| A | 42mm |
| F | 66mm |
| L | 87mm |
| O | 19.3mm |
| Thread Size G | M16 |
| GL | 40mm |
| Static Load Co | 60.5kN |
| Dynamic Load | 21.5kN |
| Limiting Speed | 660rev/min |
| Approx weight | 0.189kg |
