SKU: FYTJ35KF-SKF

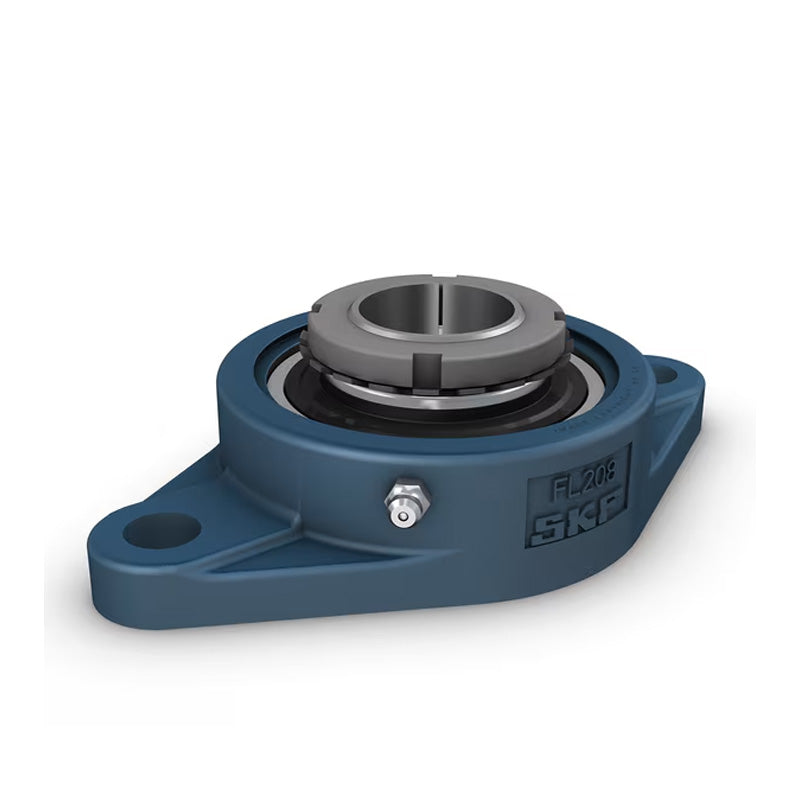

SKF FYTJ35KF Flanged Unit with an Oval Cast Housing with 30mm Insert
SKF FYTJ35KF Flanged Unit with an Oval Cast Housing with 30mm Insert
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
In stock
Price Break
10+
CHF 61.33
20+
CHF 57.88
30+
CHF 57.19
40+
CHF 56.51
50+
CHF 55.82
75+
CHF 55.13
100+
CHF 51.68
200+
CHF 50.99
250+
CHF 50.30
500+
CHF 49.61
1000+
CHF 48.24
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 130mm
Technical
Technical

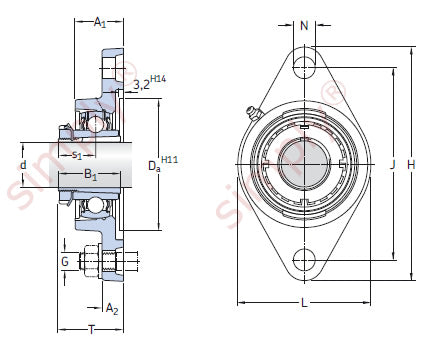

| d | 30mm |
|---|---|
| A1 | 34mm |
| A2 | 16mm |
| B1 | 43mm |
| Da | 88.9mm |
| H | 161mm |
| J | 130mm |
| L | 96mm |
| N | 16mm |
| G | 14mm |
| s1 | 24.3mm |
| T | 43.3mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.3 kg |
