• SKF FYT7/8FM Oval Cast Housing with Grub Screw 7/8 inch Insert
1 1

SKU: FYT7/8FM-SKF

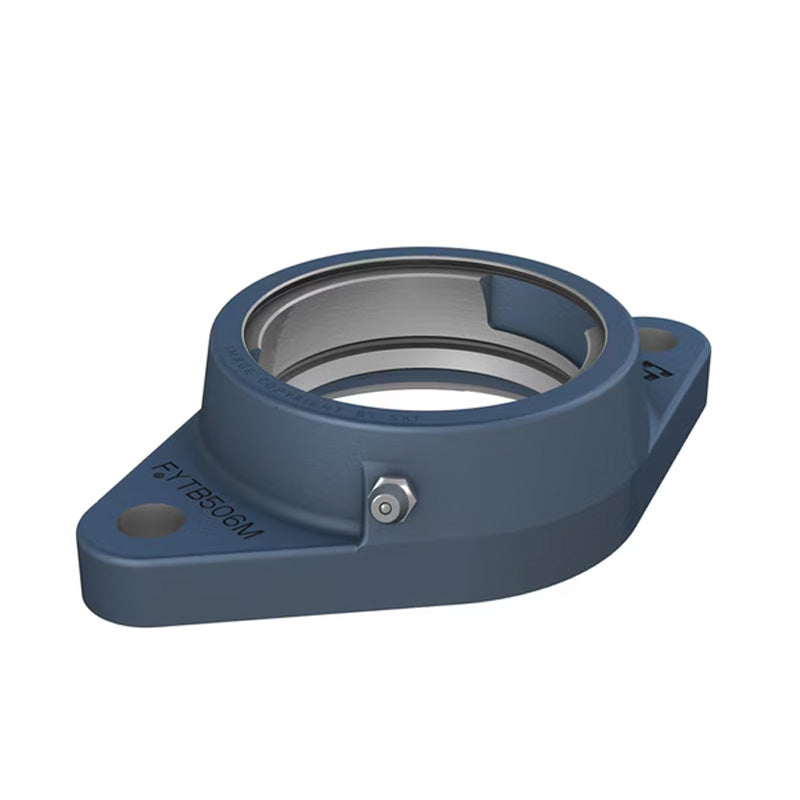

SKF FYT7/8FM Oval Cast Housing with Grub Screw 7/8 inch Insert

SKF FYT7/8FM Oval Cast Housing with Grub Screw 7/8 inch Insert
CHF 47.00 ex VAT
CHF 47.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 37.01
20+ CHF 34.93
30+ CHF 34.51
40+ CHF 34.10
50+ CHF 33.68
75+ CHF 33.27
100+ CHF 31.19
200+ CHF 30.77
250+ CHF 30.36
500+ CHF 29.94
1000+ CHF 29.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
FYT
Bolt Hole Centres:
98.8mm

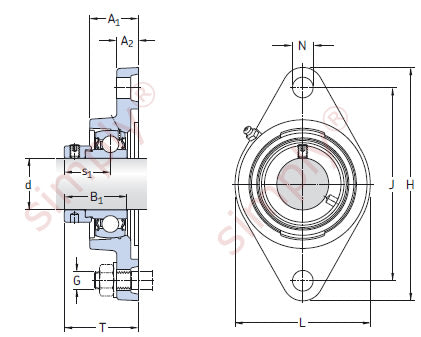

Technical
d 7/8 inch
A1 30mm
A2 32mm
B1 33mm
H 324mm
J 98.8mm
L 70mm
N 32.7mm
G 30mm
s1 23.5mm
T 42.5mm
Static load Cr 7.8 kN
Dynamic load Cor 14 kN
Fatigue load limit 0.335 kN
Limiting speed 7000 rpm
Weight 0.67 kg
Housing Insert
