SKU: FYT1.3/16RM-SKF
SKF FYT1-3/16RM Oval Cast Housing with Grub Screw 1-3/16 inch Insert
SKF FYT1-3/16RM Oval Cast Housing with Grub Screw 1-3/16 inch Insert
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
10+
CHF 40.45
20+
CHF 38.18
30+
CHF 37.72
40+
CHF 37.27
50+
CHF 36.82
75+
CHF 36.36
100+
CHF 34.09
200+
CHF 33.63
250+
CHF 33.18
500+
CHF 32.73
1000+
CHF 31.82
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 116.9mm
Technical
Technical

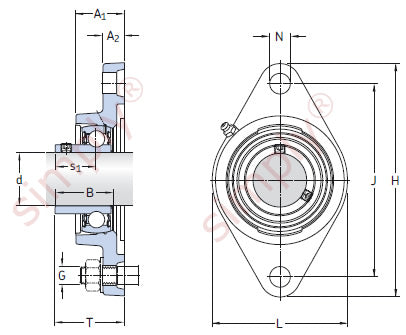

| d | 1-3/16 inch |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 31mm |
| H | 141.5mm |
| J | 116.9mm |
| L | 83mm |
| N | 12.7mm |
| G | 10mm |
| s1 | 22mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.88 kg |
| Housing | Insert |
