SKU: FY1.1/2WF-SKF
SKF FY1-1/2WF Square Cast Housing with Eccentric Collar 1-1/2 inch Insert
SKF FY1-1/2WF Square Cast Housing with Eccentric Collar 1-1/2 inch Insert
Regular price
CHF 106.00
ex VAT
Regular price
Sale price
CHF 106.00
ex VAT
In stock
Price Break
10+
CHF 84.10
20+
CHF 79.38
30+
CHF 78.43
40+
CHF 77.49
50+
CHF 76.54
75+
CHF 75.60
100+
CHF 70.87
200+
CHF 69.93
250+
CHF 68.98
500+
CHF 68.04
1000+
CHF 66.15
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FY
- Bolt Hole Centres:
- 101.5mm
Technical
Technical

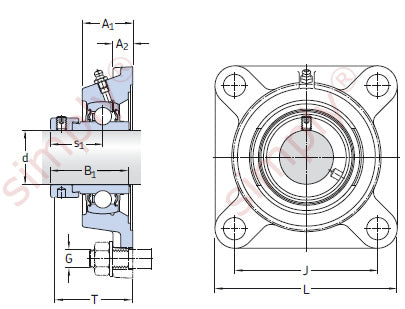

| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 34mm |
| B1 | 56.3mm |
| J | 101.5mm |
| L | 130mm |
| G | 32mm |
| s1 | 34.9mm |
| T | 58.9mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2.1 kg |
| Housing | Insert |
