SKU: FSAFDC2518/80-SKF

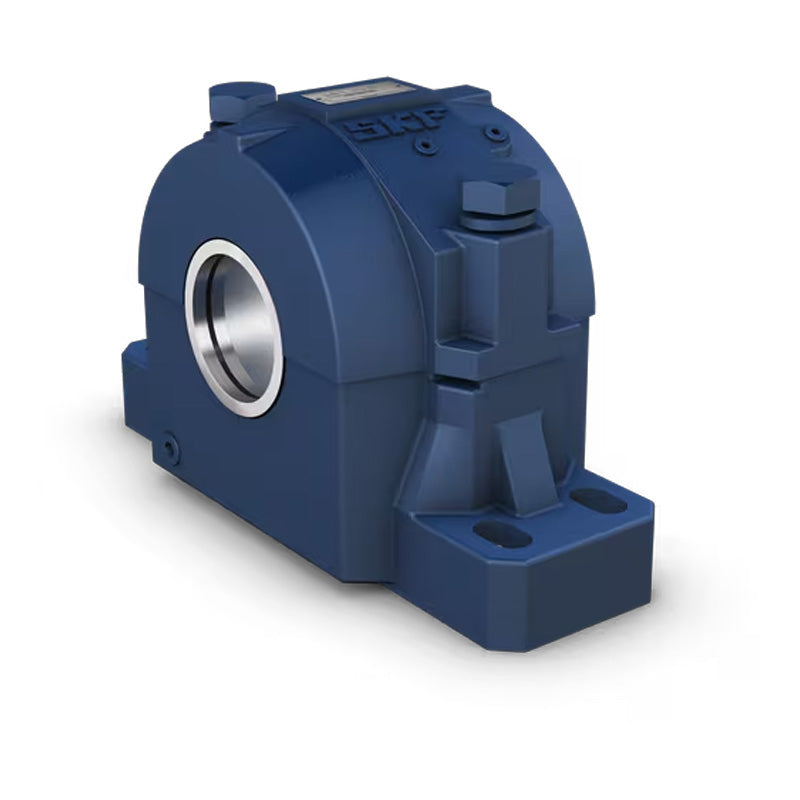

SKF FSAFDC2518/80 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFDC2518/80 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Share this product
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
Technical
Technical
| Housing | FSAFD518 |
|---|---|
| Triple Ring Seal | LOR639 |
| Bearing | C2218K |
| Adaptor Sleeve | H318E |
| Fixing Rings (2 required) | FRB11.2/160 |
| da | 80mm |
| A | 140mm = 5-1/2 inch |
| A1 | 98mm = 3-7/8 inch |
| A2 | 146mm = 5-3/4 inch |
| A3 | 221mm = 8-11/16 inch |
| H | 197mm = 7-3/4 inch |
| H1 | 101.6mm = 4 inch |
| H2 | 41mm = 1-5/8 inch |
| H3 | 38mm = 1-1/2 inch |
| L | 349mm = 13-3/4 inch |
| J max | 295mm = 11-5/8 inch |
| J min | 264mm = 10-3/8 inch |
| J1 | 54mm = 2-1/8 inch |
| Bolts (required) | (4) 16mm = 5/8 inch |
| End plug | EPR11 |
| Weight | 21.4 kg |
