SKU: FSAFD22516/2-3/4-SKF

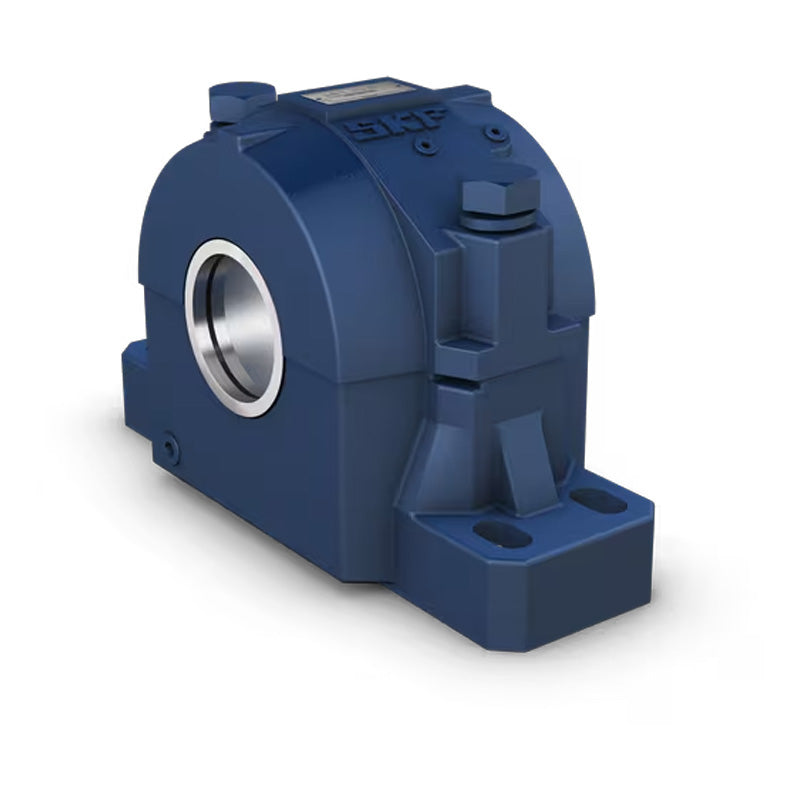

SKF FSAFD22516/2-3/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFD22516/2-3/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
Technical
Technical
| Housing | FSAFD516 |
|---|---|
| Triple Ring Seal | LOR45 |
| Taconite Service Seal | TER516/2-3/4 |
| Bearing | 22216EK |
| Adaptor Sleeve | HE316 |
| Fixing Rings (2 required) | FRB5/140 |
| da | 2-3/4 inch |
| A | 4-3/4 inch = 121mm |
| A1 | 3-1/2 inch = 89mm |
| A2 | 4-7/8 inch = 124mm |
| A3 | 7-15/16 inch = 202mm |
| H | 6-7/8 inch = 175mm |
| H1 | 3-1/2 inch = 88.9mm |
| H2 | 1-1/4 inch = 32mm |
| H3 | 1-1/4 inch = 32mm |
| L | 13 inch = 330mm |
| J max | 11 inch = 279mm |
| J min | 9-5/8 inch = 244mm |
| J1 | 2-1/8 inch = 54mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| End Plug | EPR8 |
| Weight | 15.3 kg |
