SKU: FSAFD1518/3-1/4-SKF

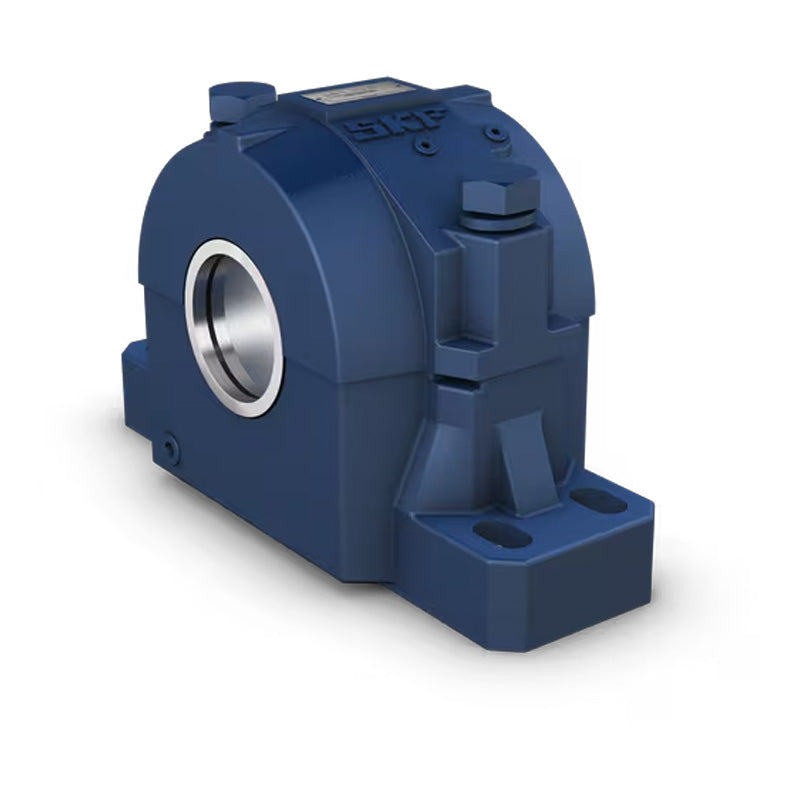

SKF FSAFD1518/3-1/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFD1518/3-1/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
Technical
Technical
| Housing | FSAFD518 |
|---|---|
| Triple Ring Seal | LOR189 |
| Taconite Service Seal | TER518/3-1/4 |
| Bearing | 1218K |
| Adaptor Sleeve | HE218 |
| Fixing Rings (2 required) | FRB16.2/160 |
| da | 3-1/4 inch |
| A | 5-1/2 inch = 140mm |
| A1 | 3-7/8 inch = 98mm |
| A2 | 5-3/4 inch = 146mm |
| A3 | 8-11/16 inch = 221mm |
| H | 7-3/4 inch = 197mm |
| H1 | 4 inch = 101.6mm |
| H2 | 1-5/8 inch = 41mm |
| H3 | 1-1/2 inch = 38mm |
| L | 13-3/4 inch = 349mm |
| J max | 11-5/8 inch = 295mm |
| J min | 10-3/8 inch = 264mm |
| J1 | 2-1/8 inch = 54mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| End Plug | EPR11 |
| Weight | 22 kg |
