SKU: FSAFC2515/2-7/16-SKF

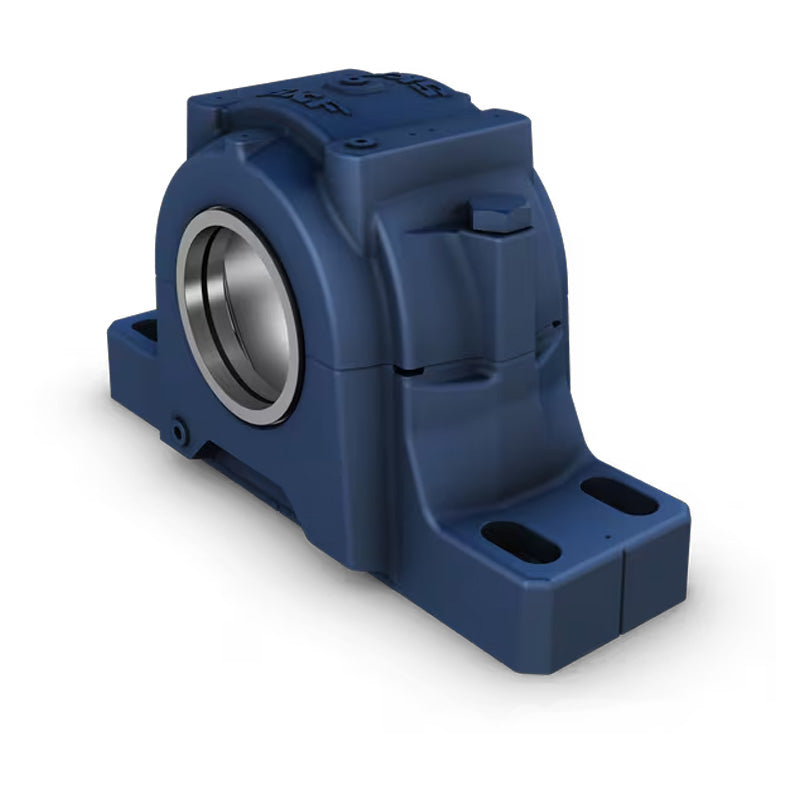

SKF FSAFC2515/2-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFC2515/2-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
Technical
Technical
| Housing | FSAF515 |
|---|---|
| Triple Ring Seal | LOR37 |
| Taconite Seal | TER37 |
| Bearing | C2215EK |
| Adaptor Sleeve | HA315E |
| Fixing Rings | 1 x SR15-0 |
| End Cover | EPR7 |
| da | 2-7/16 inch |
| A1 | 3-1/8 inch = 79.4mm |
| A2 | 4-11/16 inch = 119.1mm |
| A3 | 7-5/8 inch = 193.7mm |
| H | 6-13/64 inch = 157.6mm |
| H1 | 3-1/4 inch = 82.55mm |
| H2 | 1-1/8 inch = 28.6mm |
| Static oil level H3 Roller bearing | 1-1/8 inch = 28.6mm |
| Static oil level H3 Ball bearing | 1-1/4 inch = 31.8mm |
| J max | 9-5/8 inch = 244.5mm |
| J min | 8-5/8 inch = 219.1mm |
| J1 | 1-7/8 inch = 47.6mm |
| L | 11-1/4 inch = 285.8mm |
| X | 0.118 inch = 3mm |
| Bolts (required) G | (2) 5/8 inch = 16mm |
| Weight | 10.9 kg |
