SKU: FSAF1611/2-SKF

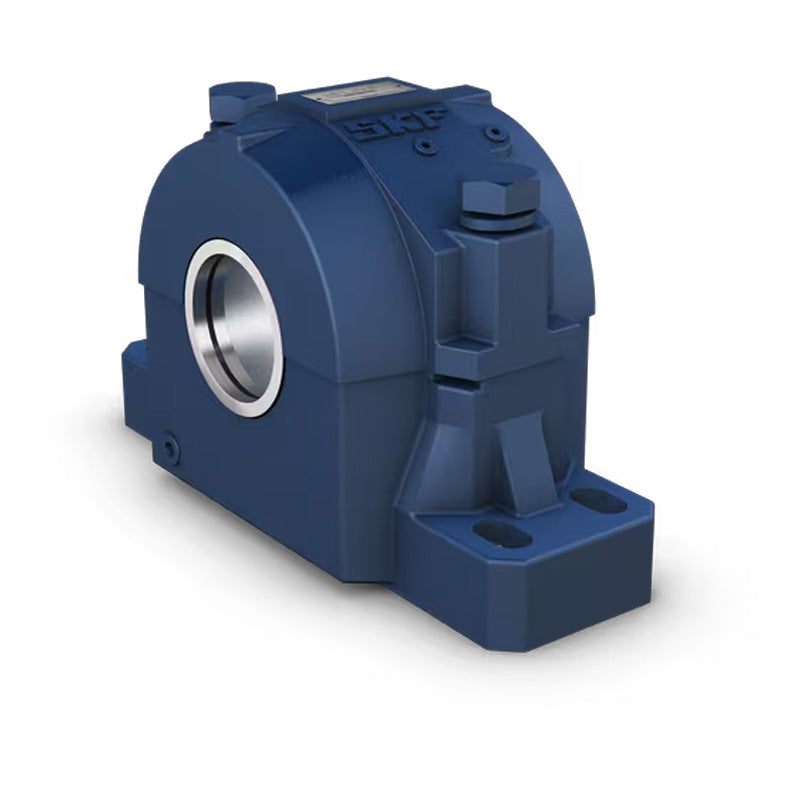

SKF FSAF1611/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAF1611/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
Technical
Technical
| Housing | FSAF611 |
|---|---|
| Triple Ring Seal | LER25 |
| Taconite Seal | TER25 |
| Bearing | 1311EK |
| Adaptor Sleeve | HE311B |
| Fixing Rings | 2 x SR1611 |
| End Cover | EPR5 |
| da | 2 inch |
| A1 | 3-1/8 inch = 79.4mm |
| A2 | 4-7/8 inch = 123.8mm |
| A3 | 7-3/4 inch = 196.8mm |
| H | 6-3/16 inch = 157.2mm |
| H1 | 3-1/4 inch = 82.6mm |
| H2 | 1-3/16 inch = 30.2mm |
| Static oil level H3 Roller bearing | 1-1/2 inch = 38.1mm |
| Static oil level H3 Ball bearing | 1-7/16 inch = 36.5mm |
| J max | 9-1/2 inch = 241.3mm |
| J min | 8-1/8 inch = 206.4mm |
| J1 | 2 inch = 50.8mm |
| L | 11 inch = 279.4mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1/2 inch = 12mm |
| Weight | 11.3 kg |
