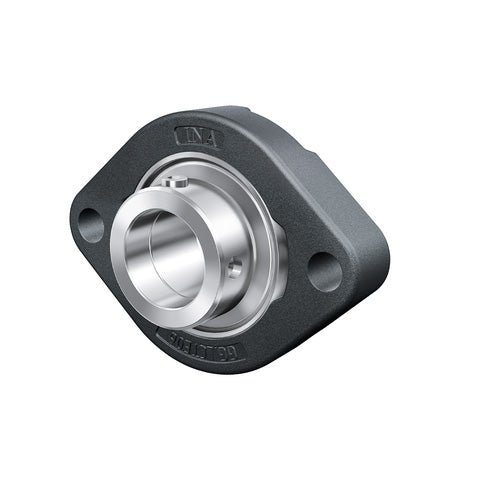

INA FLCTE20XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 20mm Bore

Name: INA FLCTE20XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 20mm Bore
Brand: INA
SKU: FLCTE20-XL-INA
Price: 35.00 CHF
Availability: InStock

CHF 35.00 ex VAT

Sale Sold out

In stock

Price Break

4+ CHF 27.56

9+ CHF 26.01

19+ CHF 25.71

29+ CHF 25.40

39+ CHF 25.09

49+ CHF 24.78

59+ CHF 23.23

69+ CHF 22.92

79+ CHF 22.61

89+ CHF 22.30

99+ CHF 21.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft.
Note: This housing unit does not have a relubrication facility.
Benefits: Eccentric collar, tolerates misalignment of the shaft.

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: FLCTE
Bolt Hole Centres:: 71.4mm

Technical

d	20mm
H	90.5mm
U	33mm
A1	17mm
A2	9.5mm
B1	31mm
d3 max	33mm
J	71.4mm
L	66.5mm
N	9mm
Mass	0.39 kg
Basic dynamic load rating Cr	13600 N
Basic static load rating Cor	6600 N
Designation of housing	LCTE04
Designation of bearing	RAE20-XL-NPP-B
