SKU: FHRE-3

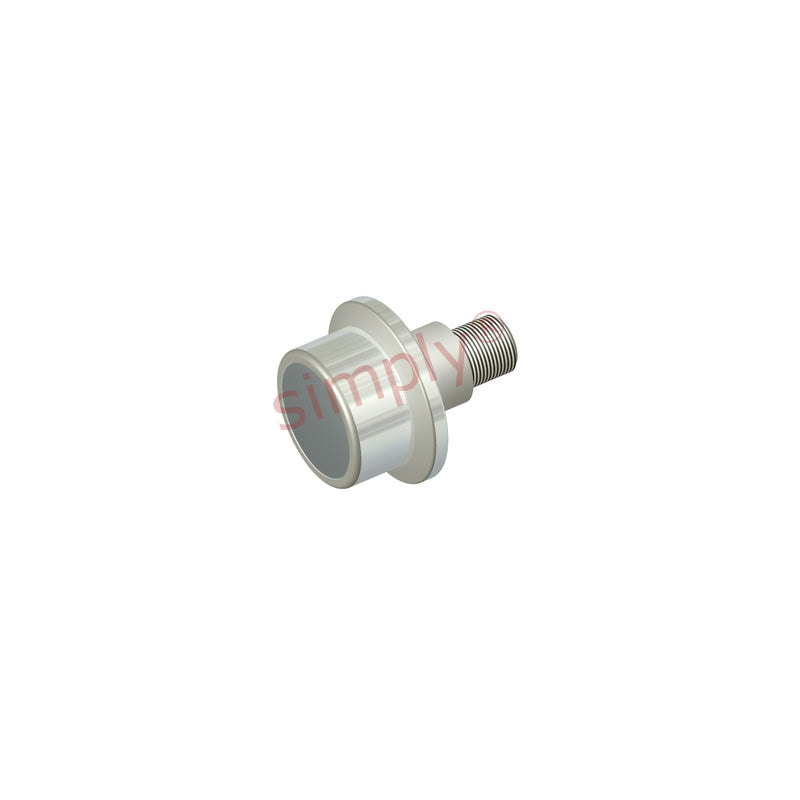

Major Brand FHRE3 Hex Head Flanged Eccentric Hi-Roller Bearing 3 inch Outside Diameter
Major Brand FHRE3 Hex Head Flanged Eccentric Hi-Roller Bearing 3 inch Outside Diameter
Regular price
CHF 286.00
ex VAT
Regular price
Sale price
CHF 286.00
ex VAT
Equivalent to: FHRE-300-A FLRE-3
In stock
Price Break
3+
CHF 228.71
4+
CHF 215.86
9+
CHF 213.29
19+
CHF 210.72
29+
CHF 208.15
39+
CHF 205.58
49+
CHF 192.73
59+
CHF 190.16
249+
CHF 187.59
499+
CHF 185.02
999+
CHF 179.88
Quantity
Couldn't load pickup availability
Description
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 76.2mm = 3 inch
- Width:
- 50.8mm = 2 inch
Technical
Technical

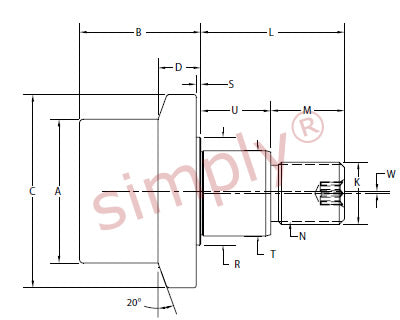

| A | 3 inch |
|---|---|
| B | 2 inch |
| C | 3.938 inch |
| D | 0.594 inch |
| L | 2.5 inch |
| M | 1-3/4 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 2.312 inch |
| S | 0.062 inch |
| T | 1.75 inch |
| U | 1.23 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
