SKU: FC1.11/16-RHP

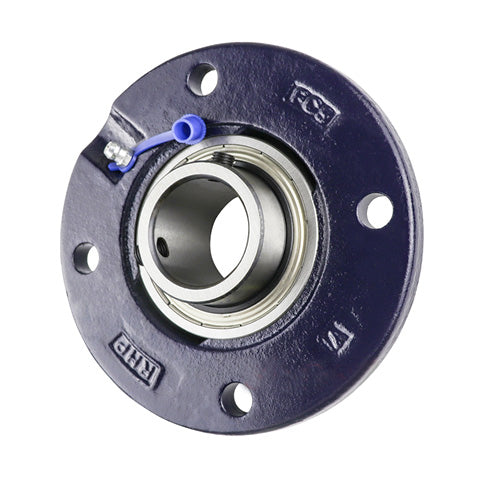

RHP FC1.11/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-11/16 inch Insert
RHP FC1.11/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-11/16 inch Insert
Out of stock
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- FC
- Pitch Circle Diameter:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 6.102 inch |
| H | 4.134 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 0.984 inch |
| A1 | 1.109 inch |
| A5 | 0.472 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16G+insonly">1045-1-11/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
