SKU: FC1.1/2DEC-RHP

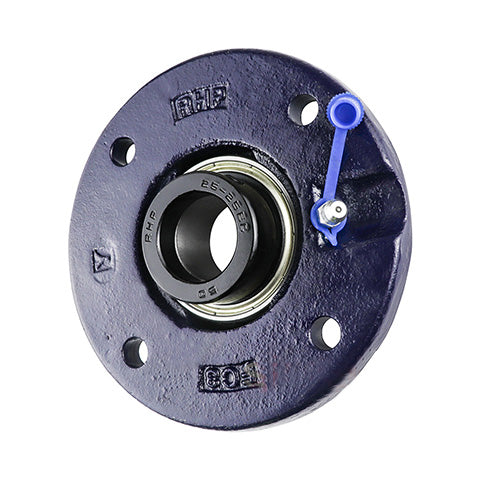

RHP FC1.1/2DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
RHP FC1.1/2DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
Out of stock
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FC
- Pitch Circle Diameter:
- 119.99mm = 4.724 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 5.709 inch |
| H | 3.937 inch |
| J | 4.724 inch |
| G | 0.375 inch |
| A | 0.906 inch |
| A3 | 1.334 inch |
| A5 | 0.453 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.374 inch |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2DECG+insonly">1040-1-1/2DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
