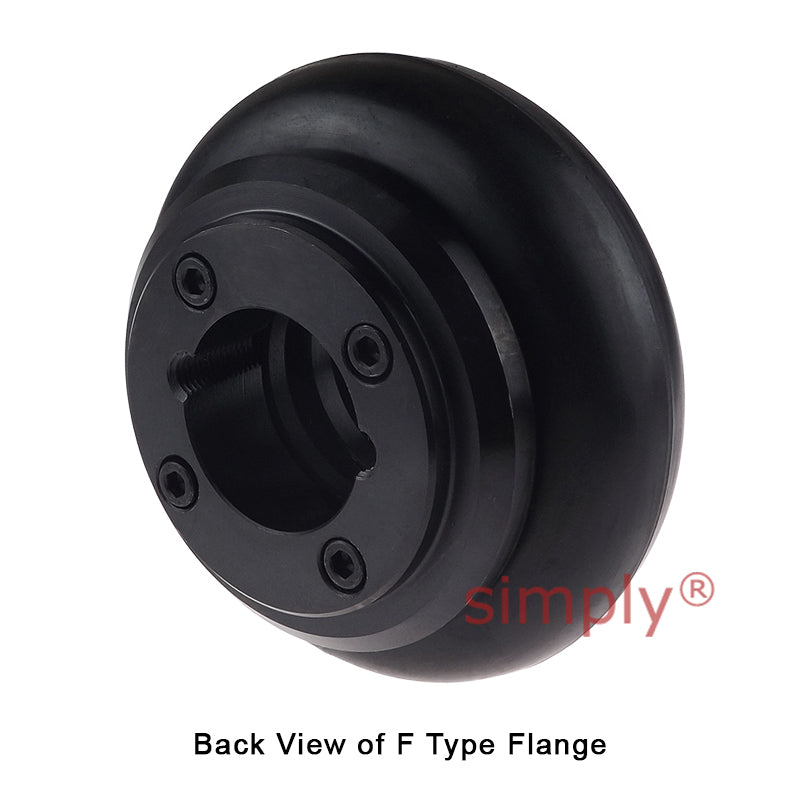

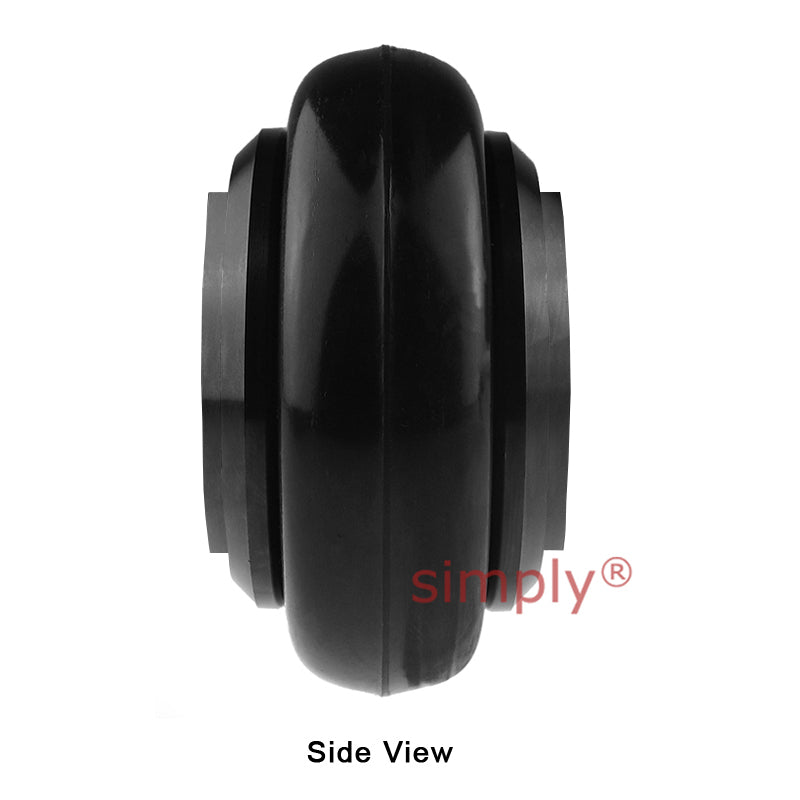

Major Branded F50F/F50B Inner Facing Taper Bore/Pilot Bored Type Tyre Drive Coupling Assembly with Natural Rubber Tyre
Equivalent to: F50F-1210 F50B F50T
In stock
Price Break
Couldn't load pickup availability
Description
Branded Inner Taper Bore/Pilot Bored Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

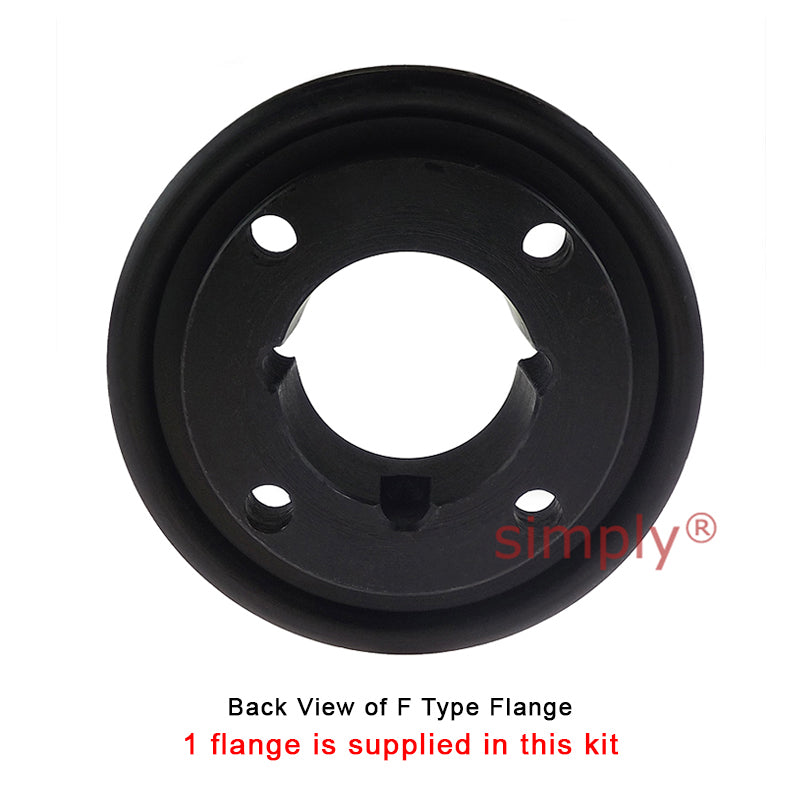

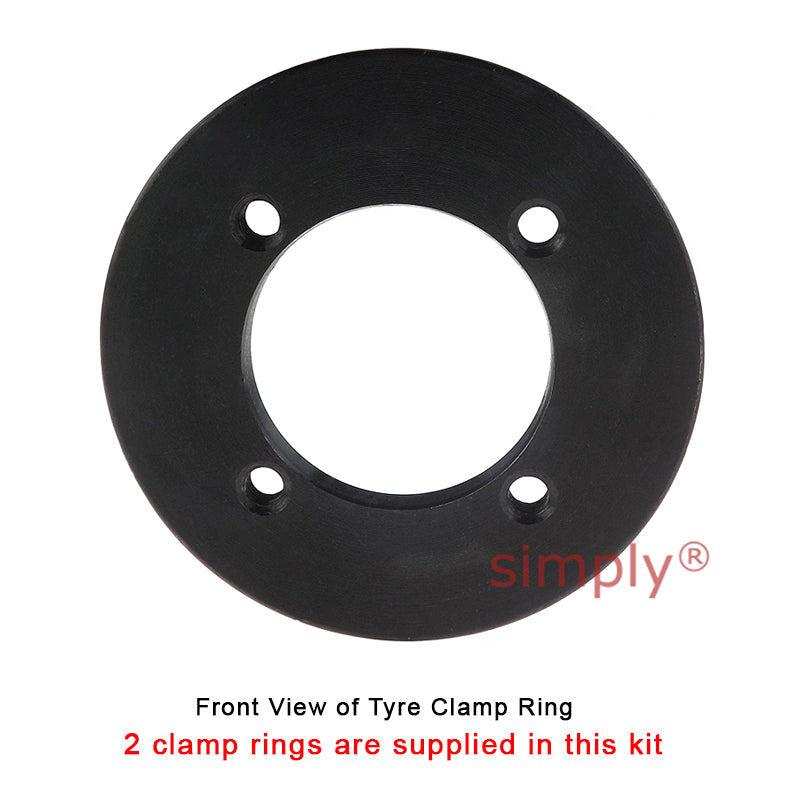

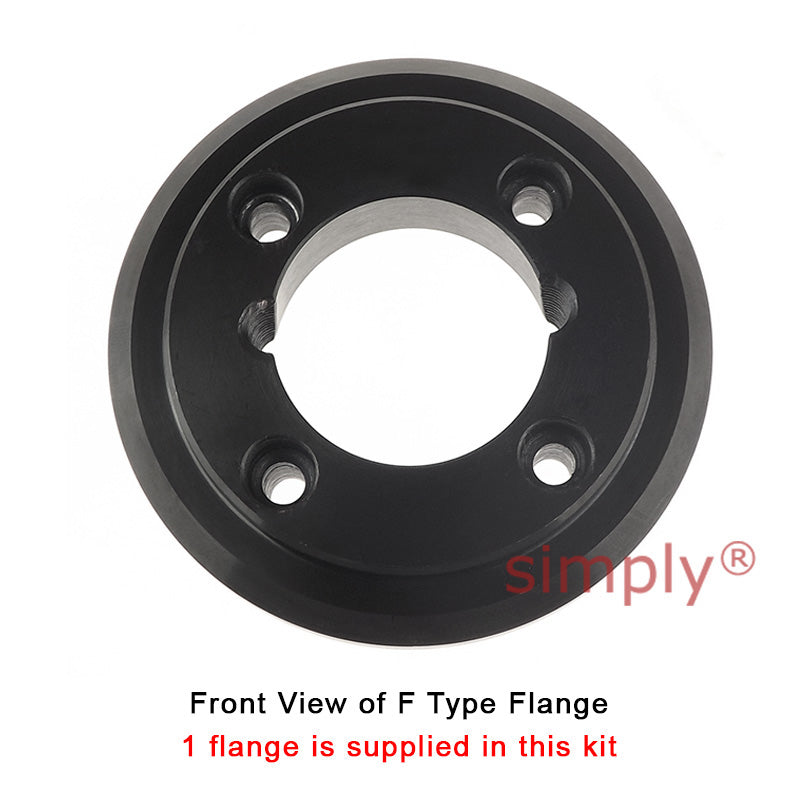

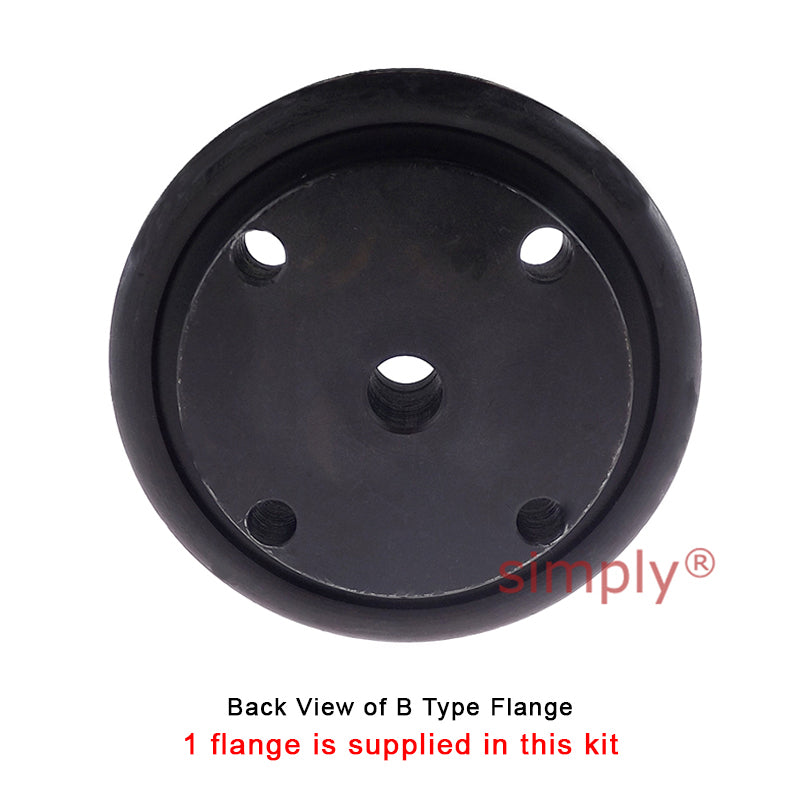

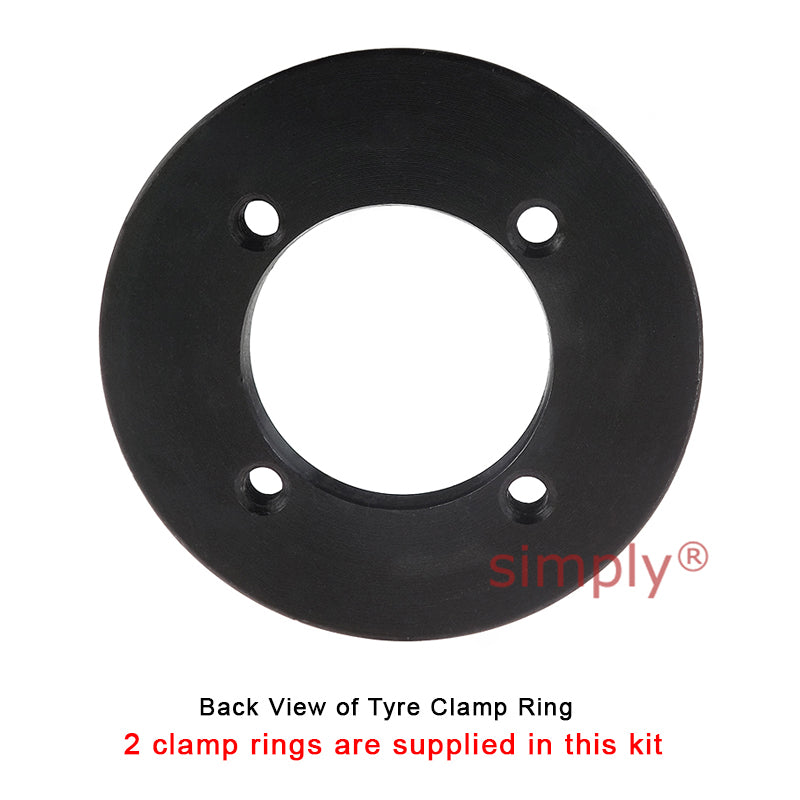

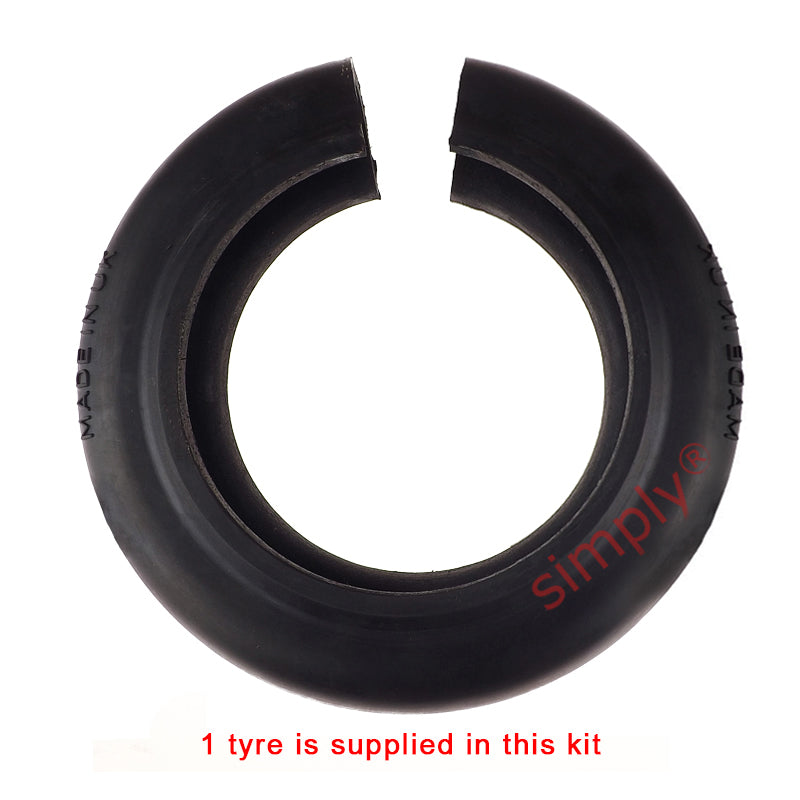

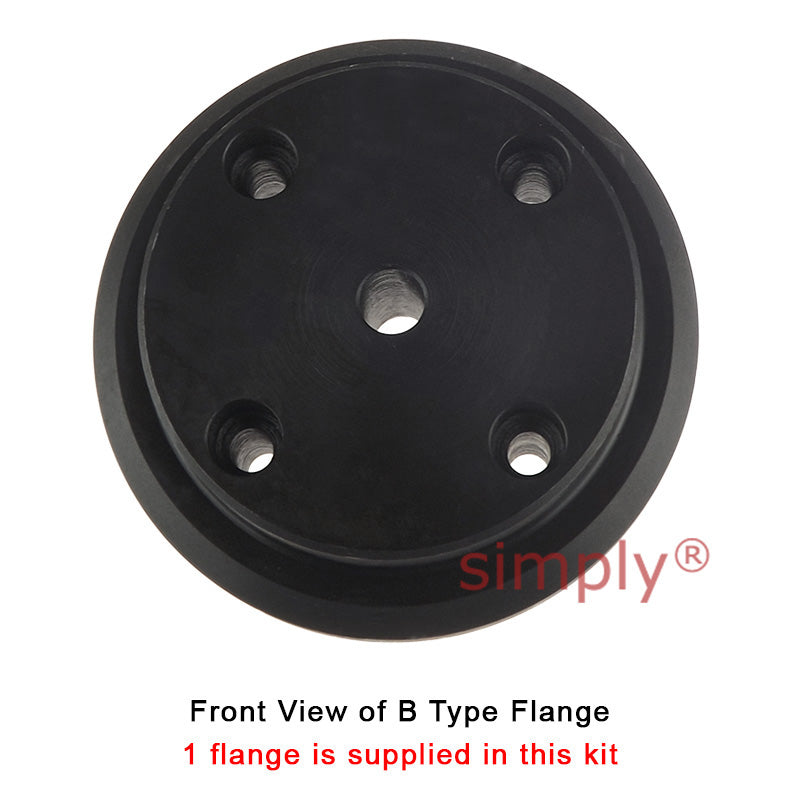

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching tyre element. This coupling assembly is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange and the B type is supplied with a nominally sized pilot bore flange.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 32mm or 1-1/4 inch
Technical
| F Type - Bush | 1210 <a href="advanced_search_result.php?keywords=taper+lock+bush+1210">[Click Here]</a> |
|---|---|
| F Type - Max Bore | 32mm |
| F Type - Max Bore | 1-1/4 inch |

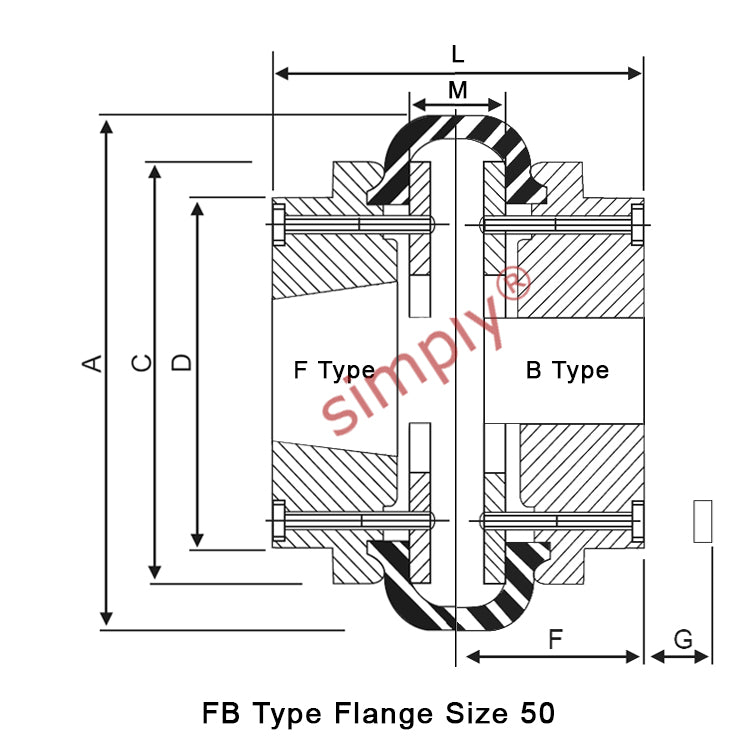

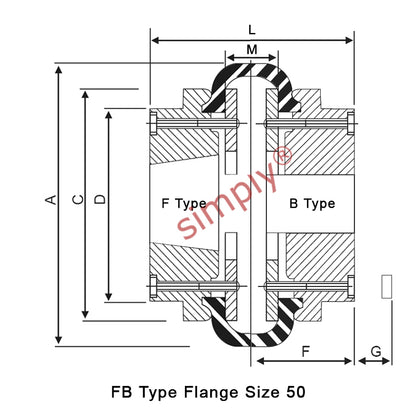

| F Type - Flange A | 133mm |
| F Type - Flange B | 79mm |
| F Type - Flange C | 100mm |
| F Type - Flange E | 12.5mm |
| F Type - Flange G | 38mm |
| F Type - Flange F | 38mm |
| F Type - Flange D | 25mm |
| F Type - Flange Weight | 1.2kg |
| F Type - Inertia | 0.00115kgm2 |
| F Type - Flange Face Spacing | 25mm |
| F Type - Gap Between Tyre Ends | 2mm |
| F Type - Nominal Torque | 66 Nm |
| F Type - Max Speed | 4500 rev/min |
| F Type - Max Par Mis | 1.3mm |
| F Type - Max End Float | 1.7mm |

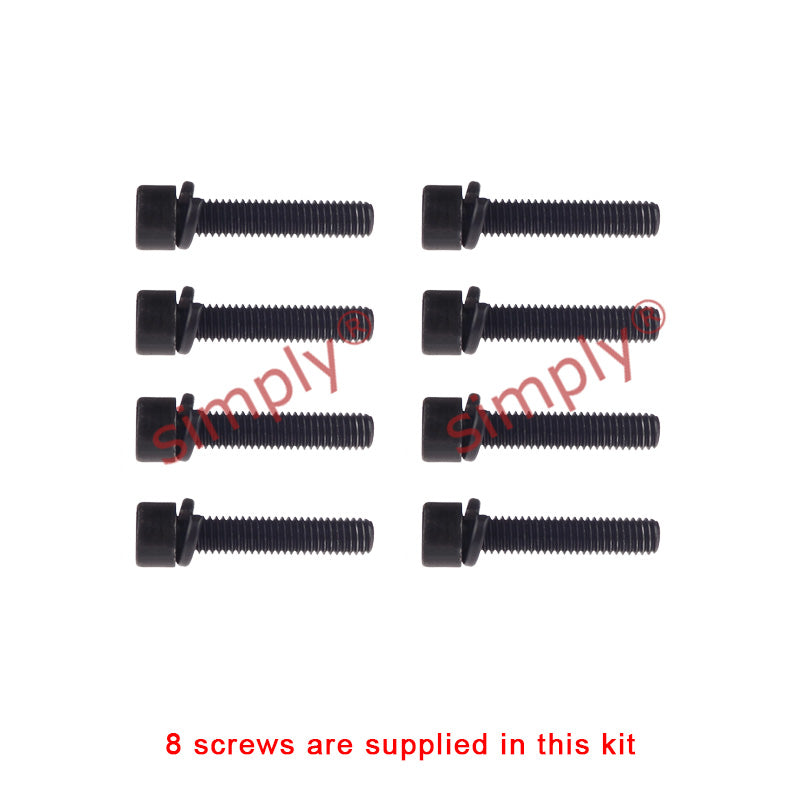

| F Type - Screw Size | M6 |
| F Type - Tigtening Torque | 15 Nm |
| B Type - Max Bore | 38mm |
| B Type - Flange A | 133mm |
| B Type - Flange B | 79mm |
| B Type - Flange C | 100mm |
| B Type - Flange E | 12.5mm |
| B Type - Flange G | 38mm |
| B Type - Flange Weight | 1.72kg |
| B Type - Inertia | 0.00115kgm2 |
| B Type - Flange Face Spacing | 25mm |
| B Type - Gap Between Tyre Ends | 2mm |
| B Type - Nominal Torque | 66 Nm |
| B Type - Max Speed | 4500 rev/min |
| B Type - Max Par Mis | 1.3mm |
| B Type - Max End Float | 1.7mm |
| B Type - Screw Size | M6 |
| B Type - Tigtening Torque | 15 Nm |
| Max Power at 100 rpm | 0.69 kW |
| Max Power at 200 rpm | 1.38 kW |
| Max Power at 300 rpm | 2.07 kW |
| Max Power at 400 rpm | 2.76 kW |
| Max Power at 500 rpm | 3.46 kW |
| Max Power at 600 rpm | 4.15 kW |
| Max Power at 700 rpm | 4.84 kW |
| Max Power at 720 rpm | 4.98 kW |
| Max Power at 800 rpm | 5.53 kW |
| Max Power at 900 rpm | 6.22 kW |
| Max Power at 960 rpm | 6.63 kW |
| Max Power at 1000 rpm | 6.91 kW |
| Max Power at 1200 rpm | 8.29 kW |
| Max Power at 1400 rpm | 9.68 kW |
| Max Power at 1440 rpm | 9.95 kW |
| Max Power at 1600 rpm | 11.1 kW |
| Max Power at 1800 rpm | 12.4 kW |
| Max Power at 2000 rpm | 13.8 kW |
| Max Power at 2200 rpm | 15.2 kW |
| Max Power at 2400 rpm | 16.6 kW |
| Max Power at 2600 rpm | 18 kW |
| Maximum Speed | 4500 rev/min |
| Nominal Torque | 66 Nm TKN |
| Maximum Torque | 160 Nm TK MAX |
| Torsional Stiffness | 13 Nm/° |
| Max. Parallel Misalignment | 1.3mm |
| Maximum End Float | 1.7mm ± |
| Approximate Mass | 0.3kg |
| Alternating Torque | 26 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
