SKU: F.6901.2RS

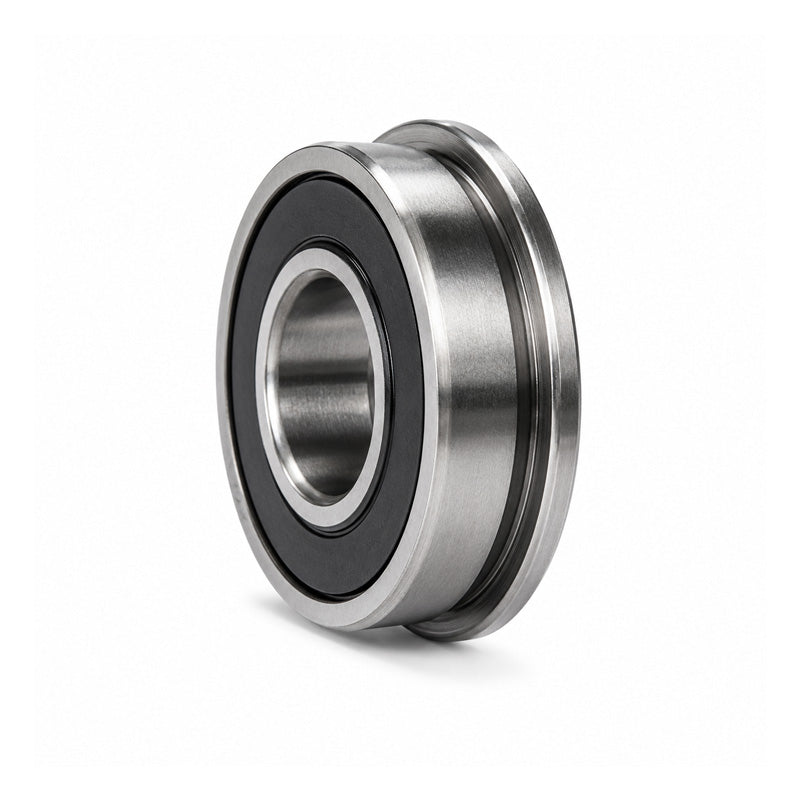

F69012RS Budget Rubber Sealed Flanged Thin Section Deep Groove Ball Bearing 12x24x6mm
F69012RS Budget Rubber Sealed Flanged Thin Section Deep Groove Ball Bearing 12x24x6mm
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
In stock
Price Break
5+
CHF 3.80
9+
CHF 3.59
19+
CHF 3.55
24+
CHF 3.50
49+
CHF 3.46
74+
CHF 3.42
99+
CHF 3.21
199+
CHF 3.16
249+
CHF 3.12
499+
CHF 3.08
999+
CHF 2.99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings with rubber seals these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports. The seals serve to offer protection to prevent ingress of debris, moisture and dust whilst retaining the grease within the bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical

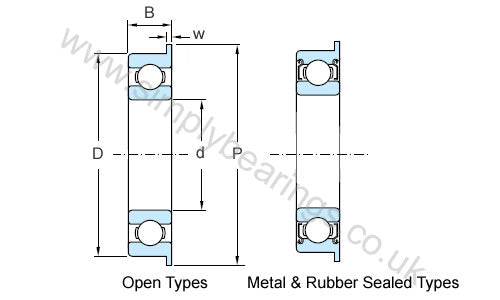

| Inside diameter d | 12mm |
|---|---|
| Outside diameter D | 24mm |
| Bearing width B | 6mm |
| Flange diameter P | 26.5mm |
| Flange width w | 1.5mm |
| Radius min | 0.3mm |
