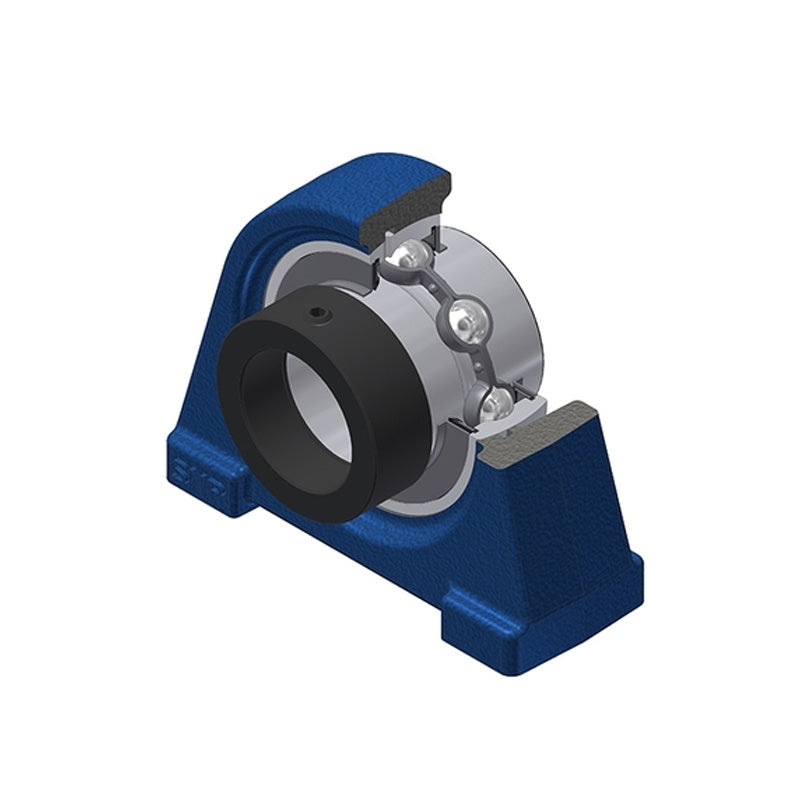

• SNR EXPAE205L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore and Triple Lip Seal - Allow 2-3 Days
1 1

SKU: EXPAE205L3-SNR

SNR EXPAE205L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore and Triple Lip Seal - Allow 2-3 Days

SNR EXPAE205L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore and Triple Lip Seal - Allow 2-3 Days
CHF 53.00 ex VAT
CHF 53.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 42.38
4+ CHF 40.00
9+ CHF 39.52
19+ CHF 39.04
49+ CHF 38.57
99+ CHF 38.09
499+ CHF 35.71
999+ CHF 35.23
1999+ CHF 34.76
2999+ CHF 34.28
4999+ CHF 33.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXPAE
Bolt Hole Centres:
50.8mm
Technical

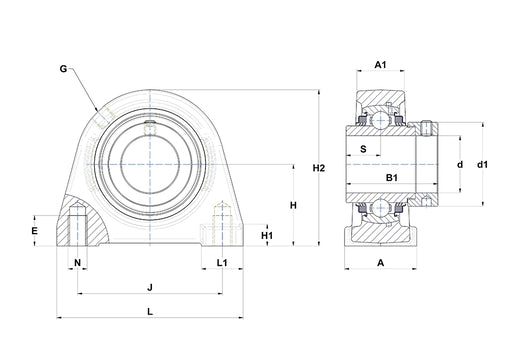

--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 34.8mm
d1 37.4mm
E 12.5mm
H 36.5mm
H1 10mm
H2 70mm
J 50.8mm
L 70mm
L1 21mm
N M10
S 17.4mm
G R1/8
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
