• SNR EXFLE214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFLE214-SNR

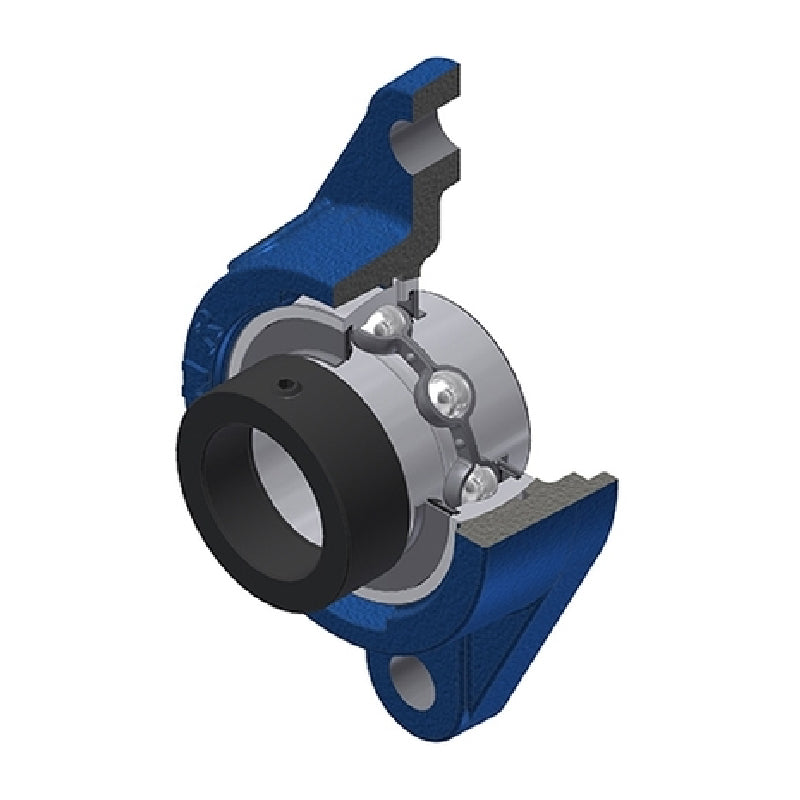

SNR EXFLE214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLE214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
CHF 126.00 ex VAT
CHF 126.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 100.09
4+ CHF 94.46
9+ CHF 93.34
19+ CHF 92.21
49+ CHF 91.09
99+ CHF 89.96
499+ CHF 84.34
999+ CHF 83.22
1999+ CHF 82.09
2999+ CHF 80.97
4999+ CHF 78.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TLMM4QWKLA
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
EXFLE
Bolt Hole Centres:
216mm
Technical

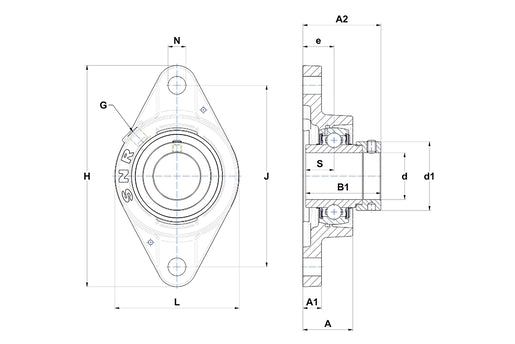

--- Dimensions
Shaft diameter d 70mm
A 57mm
A1 18mm
A2 89.6mm
B 68.2mm
B1 85.7mm
d1 96.8mm
e 38mm
H 258mm
J 216mm
L 160mm
N 21mm
S 34.1mm
G R1/8″
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.97 kg
