• SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
  • SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
1 2

SKU: ESPAE209-SNR

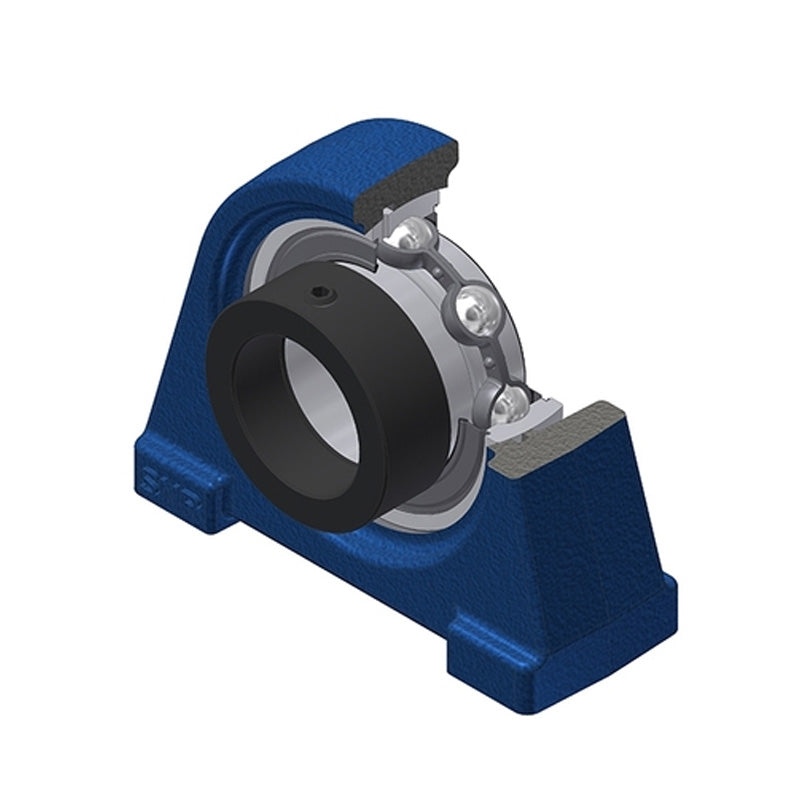

SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
CHF 50.00 ex VAT
CHF 50.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 40.00
4+ CHF 37.75
9+ CHF 37.30
19+ CHF 36.85
49+ CHF 36.40
99+ CHF 35.95
499+ CHF 33.71
999+ CHF 33.26
1999+ CHF 32.81
2999+ CHF 32.36
4999+ CHF 31.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
N3G4VXOYBO
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
ESPAE
Bolt Hole Centres:
95.3mm
Technical

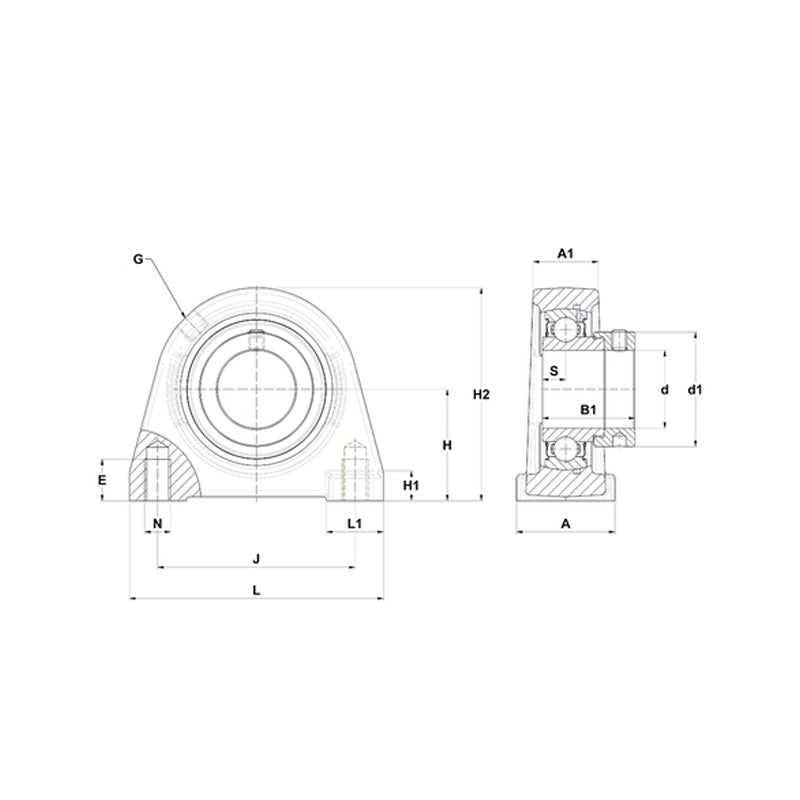

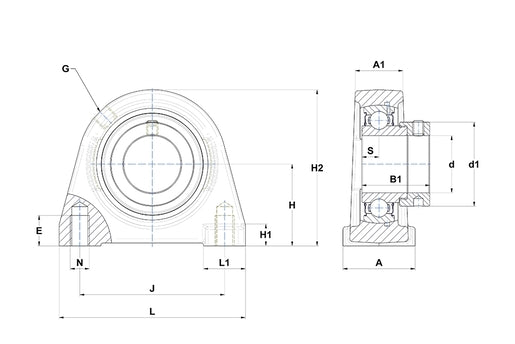

--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 30.2mm
d1 62mm
E 15mm
H 53.9mm
H1 14mm
H2 107mm
J 95.3mm
L 120mm
L1 29mm
N M12
S 11mm
G R1/8"
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.89 kg
