• SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE206-SNR

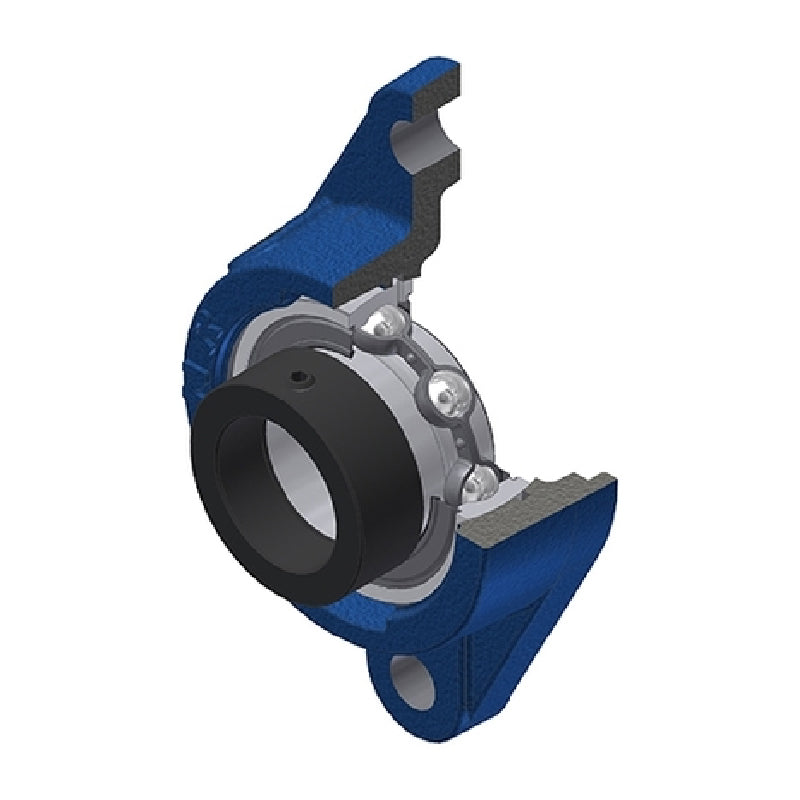

SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
CHF 29.00 ex VAT
CHF 29.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 22.88
4+ CHF 21.59
9+ CHF 21.33
19+ CHF 21.08
49+ CHF 20.82
99+ CHF 20.56
499+ CHF 19.28
999+ CHF 19.02
1999+ CHF 18.76
2999+ CHF 18.51
4999+ CHF 17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESFLE
Bolt Hole Centres:
116.5mm
Technical

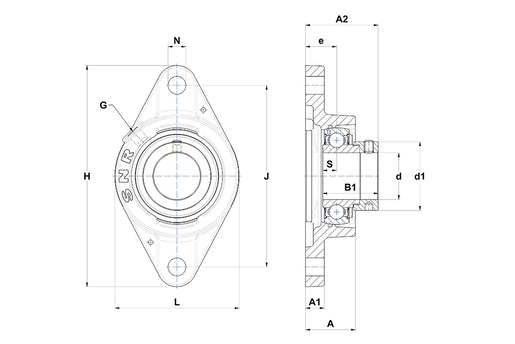

--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 46.7mm
B 23.8mm
B1 35.7mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.83 kg
