• SNR ESF212 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 60mm Bore - Allow 2-3 Days
1 1

SKU: ESF212-SNR

SNR ESF212 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 60mm Bore - Allow 2-3 Days

SNR ESF212 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 60mm Bore - Allow 2-3 Days
CHF 75.00 ex VAT
CHF 75.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 59.77
4+ CHF 56.41
9+ CHF 55.74
19+ CHF 55.07
49+ CHF 54.40
99+ CHF 53.73
499+ CHF 50.37
999+ CHF 49.70
1999+ CHF 49.02
2999+ CHF 48.35
4999+ CHF 47.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LXCMIG7NEM
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESF
Bolt Hole Centres:
143mm
Technical

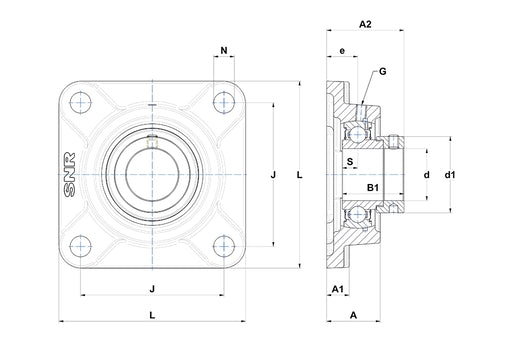

--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 18mm
A2 66.3mm
B 33.4mm
B1 49.3mm
d1 82mm
e 29mm
J 143mm
L 175mm
N 19mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.03 kg
