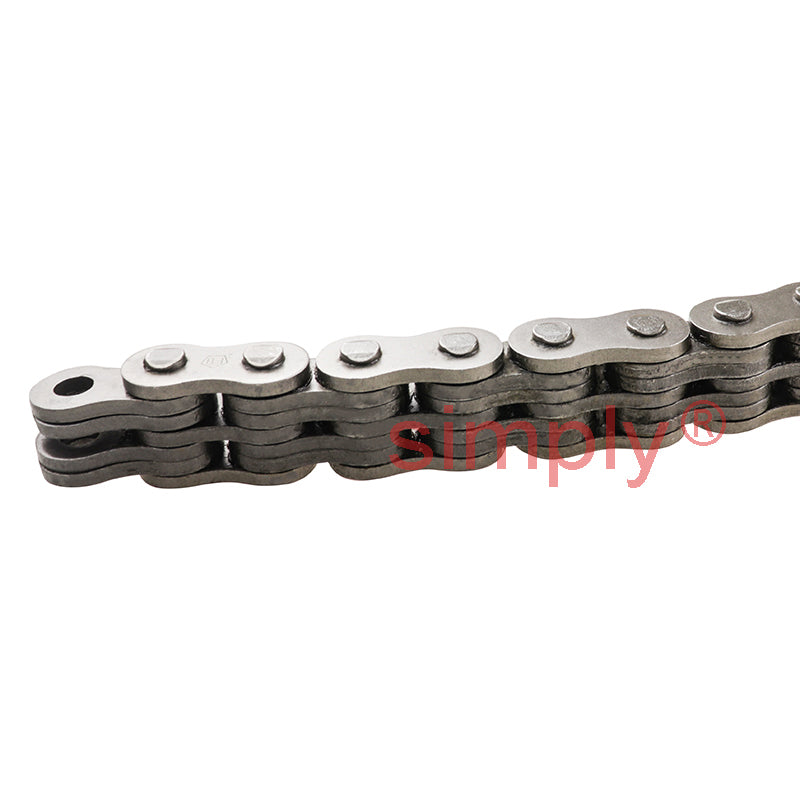

Major Brand EL544 Leaf Chain 5/8 inch Pitch - 10 Feet

Leaf Chain - EL-LL Type: Leaf Chain is the simplest of steel chains, consisting only of link plates and pins. This chain generally has greater tensile strength than roller chains and runs over sheaves rather than sprockets. They are suitable for hanging, balancing or motion-transmitting applications. Leaf chains are often used as counterweight chains for machine tools, elevator and oven doors, forklift truck masts, spinning frames and similar lifting or balancing applications. Plates are connected by pins and hold the tension loaded on the chain.
EL-LL Type: EL-LL series (European Light – Leaf Light) leaf chain, manufactured according to ISO4347, DIN8152 and NFE26107, is also constructed from roller chain components but to European standard. Like AL series leaf chain, EL-LL series leaf chain is a lightweight leaf chain used for light load lifting applications and machine tools.
Benefits: Long service life, high strength, compact design

Brand / Quality:

Major Brand - High Quality

Inside Diameter:

5.08mm

Style:

4x4 Lacing

Type:

EL Series

Pitch:

15.88mm = 0.625 (5/8) inch
