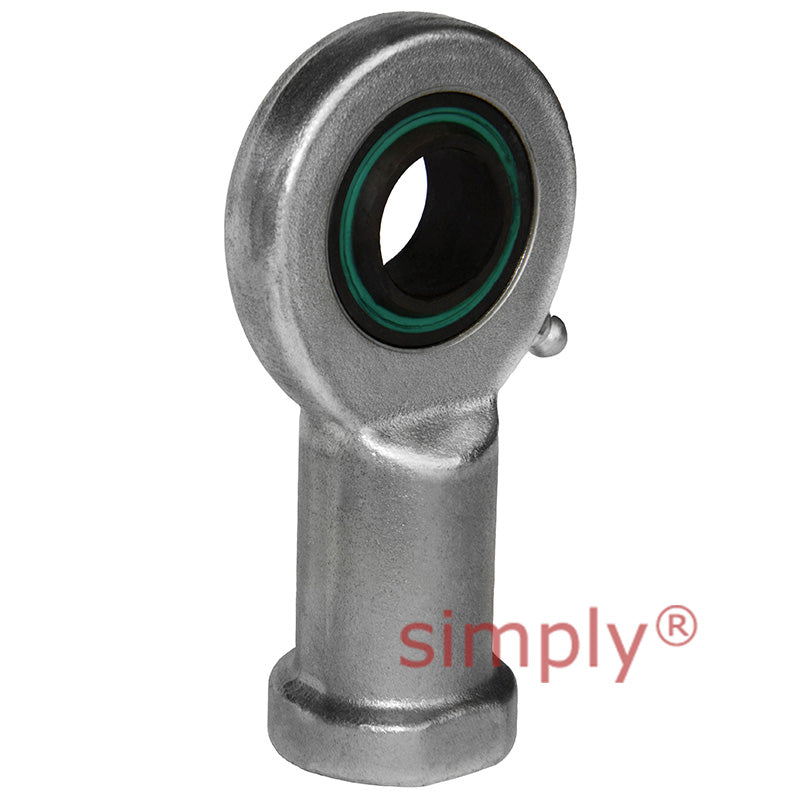

Fluro EIL402RS Left Hand Zinc Plated Steel Female Plain Rod End M39x3 Thread
Fluro EIL402RS Left Hand Zinc Plated Steel Female Plain Rod End M39x3 Thread
Out of stock
Share this product
Description
Description
Fluro EI (-2RS) Series Zinc Plated Steel Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated, with steel on steel Spherical Plain Bearings which require lubrication. For use at high multidirectional loads and limited fitting dimensions.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M39x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 39x3mm
- Inside Diameter:
- 40mm
- Material:
- Steel
Technical
Technical
| Bore Size D | 40mm |
|---|---|
| B | 28mm |
| M | 23mm |
| A | 92mm |
| F | 142mm |
| L | 188mm |
| K | 65mm |
| J | 52mm |
| O | 45mm |
| SW | 55mm |
| Thread Size G | M39x3 |
| GL | 65mm |
| Static Load Co | 178kN |
| Dynamic Load | 100kN |
| Approx weight | 2kg |
