SKU: EI08DNIRO-FLURO

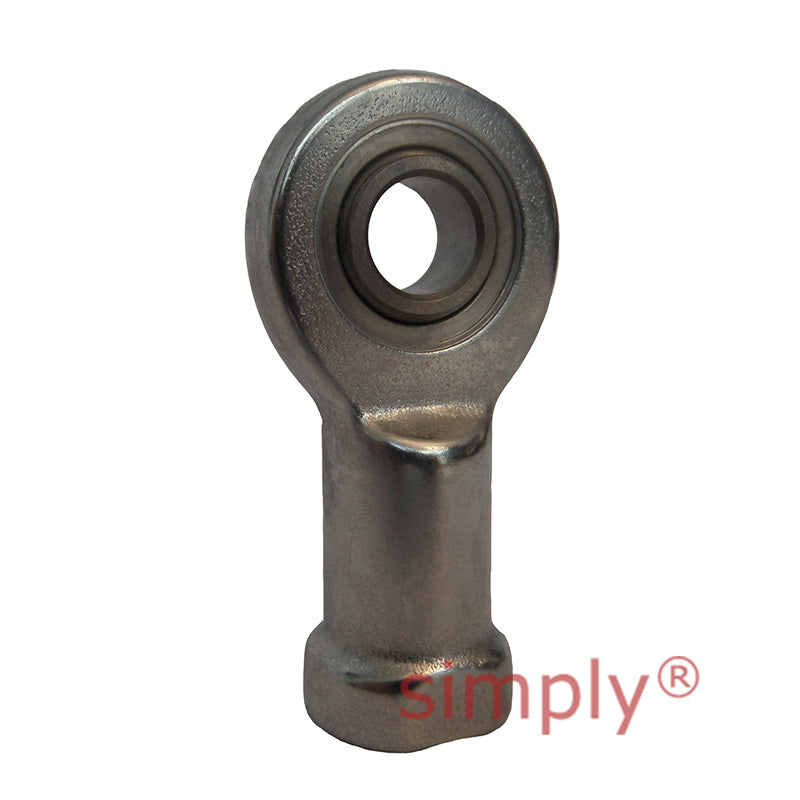

Fluro EI08DNIRO Right Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M8 Thread
Fluro EI08DNIRO Right Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M8 Thread
Out of stock
Share this product
Description
Description
Fluro EI..D-NIRO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 8mm
- Inside Diameter:
- 8mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 8mm |
|---|---|
| B | 8mm |
| M | 6mm |
| A | 24mm |
| F | 36mm |
| L | 48mm |
| K | 16mm |
| J | 12.5mm |
| O | 10.2mm |
| SW | 14mm |
| Thread Size G | M8 |
| GL | 16mm |
| Static Load Co | 9.2kN |
| Dynamic Load | 7kN |
| Approx weight | 0.038kg |
