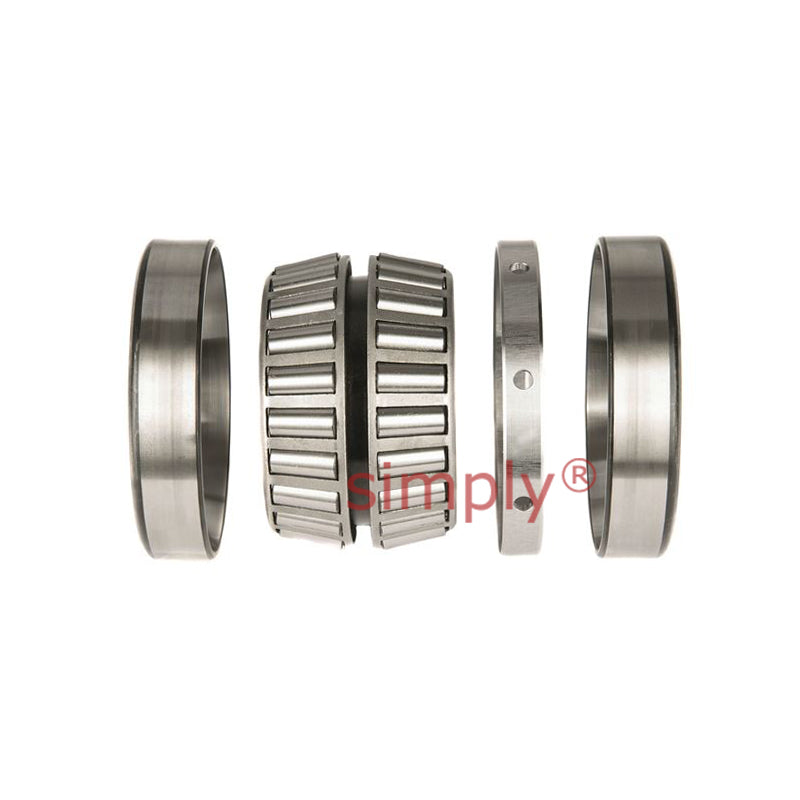

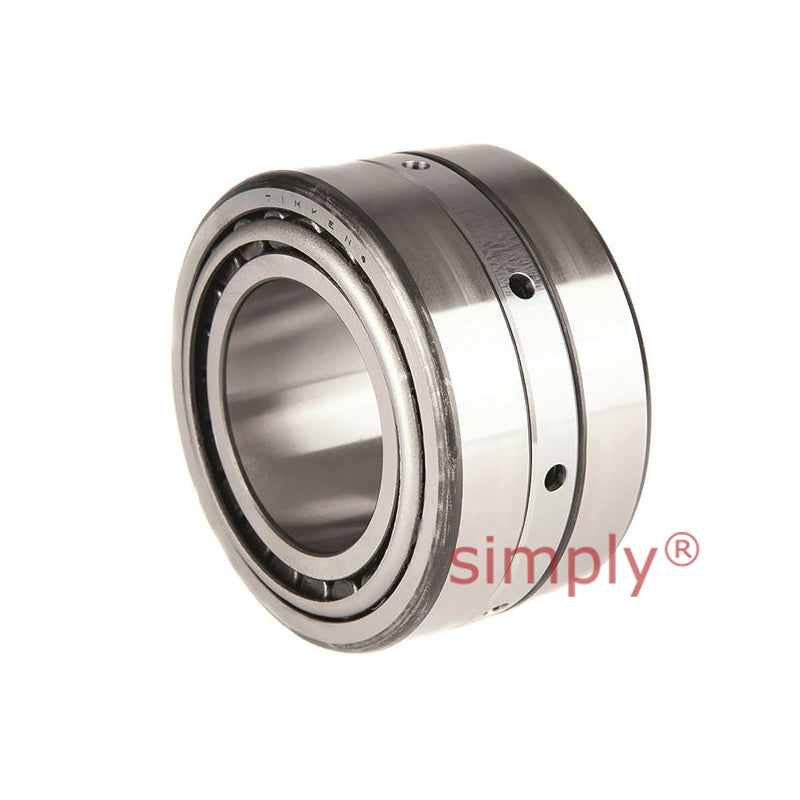

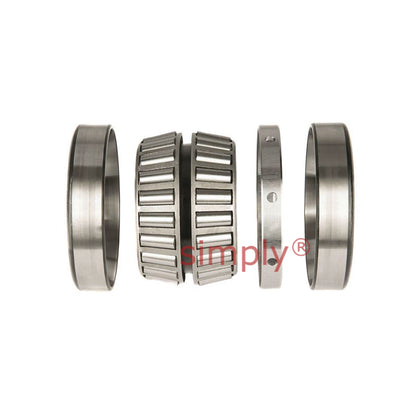

Timken EE529091D/529157 TDI Double Inner Race Taper Roller Bearing 9x15.75x5.5x5.5 inch
Timken EE529091D/529157 TDI Double Inner Race Taper Roller Bearing 9x15.75x5.5x5.5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 228.6mm = 9 inch
- Outside Diameter:
- 400.05mm = 15.75 (15-3/4) inch
- Width:
- 139.7mm = 5.5 (5-1/2) inch
Technical
Technical
| d | 228.6mm = 9 inch |
|---|---|
| D | 400.05mm = 15.75 inch |
| T | 139.7mm = 5.5 inch |
| C | 139.7mm = 5.5 inch |
| Dynamic (1) C1 | 1900000N |
| Factors (5) e | 0.31 |
| Factors (5) Y1 | 2.19 |
| Factors (5) Y2 | 3.25 |
| Dynamic (2) C90 | 283000N |
| Dynamic (2) Ca90 | 150000N |
| Dynamic (2) C90(2) | 493000N |
| Factors (5) K | 1.89 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 256mm = 10.08 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 367mm = 14.45 inch |
| G1 | 1400 |
| G2 | 153 |
| Cg | 0.1415 |
