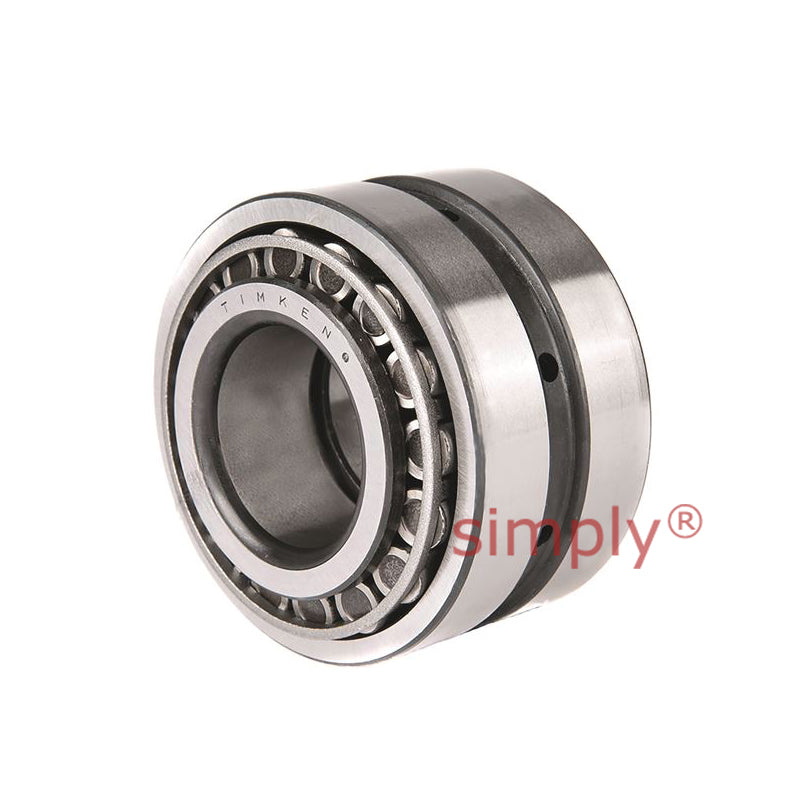

Timken EE333140/333203CD/X1S333140 TDO Double Outer Race Taper Roller Bearing 14x20.25x7.625x6 inch
Timken EE333140/333203CD/X1S333140 TDO Double Outer Race Taper Roller Bearing 14x20.25x7.625x6 inch
Out of stock
Description
Description

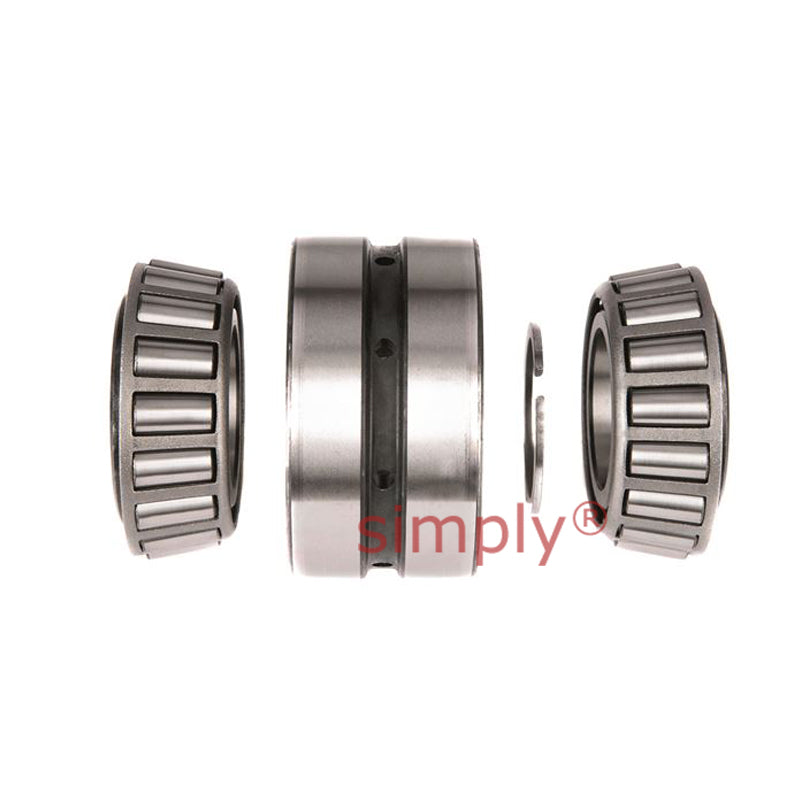

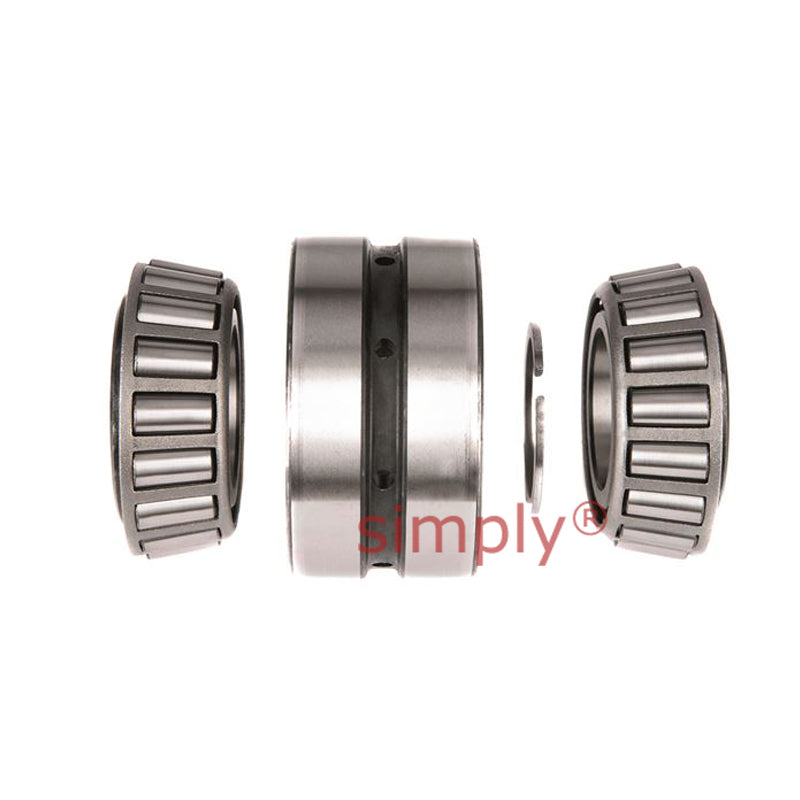

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 355.60mm = 14 inch
- Outside Diameter:
- 514.35mm = 20.25 inch
- Width:
- 193.68mm = 7.625 inch
Technical
Technical
| d | 355.6mm = 14 inch |
|---|---|
| D | 514.35mm = 20.25 inch |
| T | 193.675mm = 7.625 inch |
| C | 152.4mm = 6 inch |
| Dynamic (1) C1 | 2300000N |
| Factors (5) e | 0.37 |
| Factors (5) Y1 | 1.84 |
| Factors (5) Y2 | 2.74 |
| Dynamic (2) C90 | 343000N |
| Dynamic (2) Ca90 | 216000N |
| Dynamic (2) C90(2) | 598000N |
| Factors (5) K | 1.59 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 387mm = 15.24 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 478.5mm = 18.83 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 11.7mm = 0.46 inch |
| G1 | 3040 |
| G2 | 337 |
| Cg | 0.1928 |
