SKU: EE329117D/329172/Y1S-329172-TIM

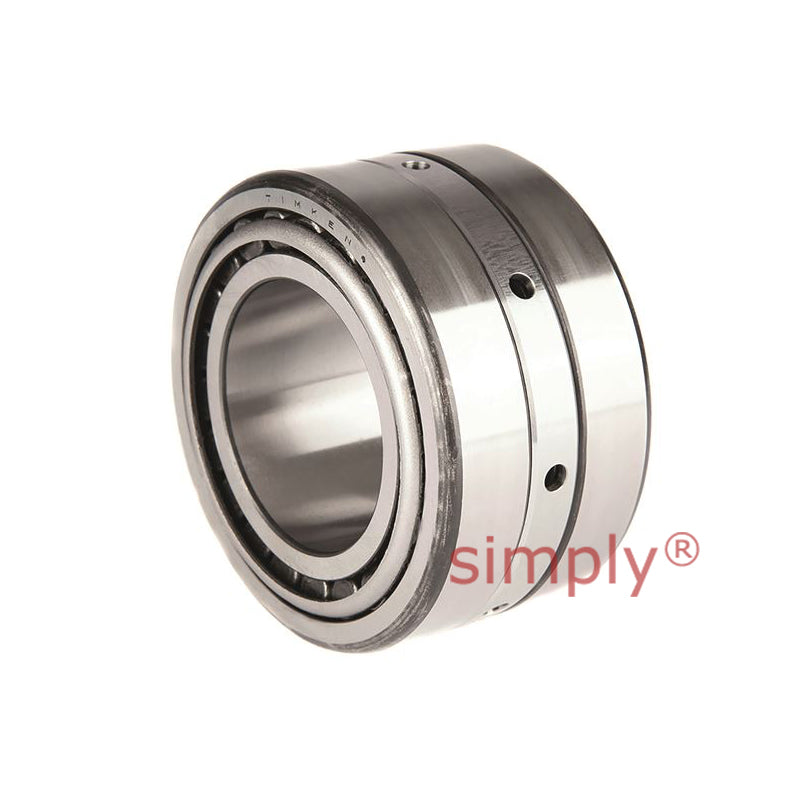

Timken EE329117D/329172/Y1S-329172 TDI Double Inner Race Taper Roller Bearing 11.994x17.246x5.1875x5.1875 inch
Timken EE329117D/329172/Y1S-329172 TDI Double Inner Race Taper Roller Bearing 11.994x17.246x5.1875x5.1875 inch
Out of stock
Description
Description

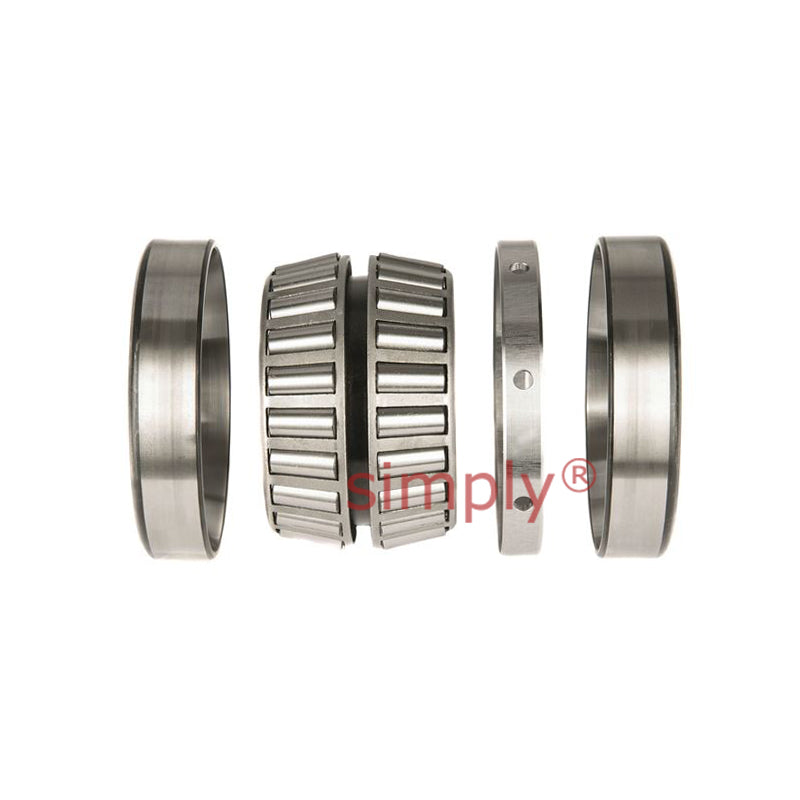

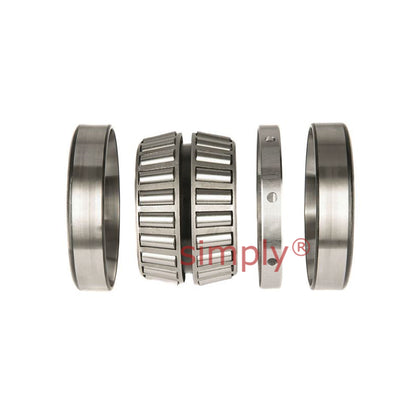

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 304.65mm = 11.994 inch
- Outside Diameter:
- 438.05mm = 17.246 inch
- Width:
- 131.76mm = 5.187 (5-3/16) inch
Technical
Technical
| d | 304.648mm = 11.994 inch |
|---|---|
| D | 438.048mm = 17.246 inch |
| T | 131.762mm = 5.1875 inch |
| C | 131.762mm = 5.1875 inch |
| Dynamic (1) C1 | 1880000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.04 |
| Factors (5) Y2 | 3.03 |
| Dynamic (2) C90 | 280000N |
| Dynamic (2) Ca90 | 159000N |
| Dynamic (2) C90(2) | 488000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 327mm = 12.87 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 410mm = 16.14 inch |
| G1 | 2100 |
| G2 | 262 |
| Cg | 0.1651 |
