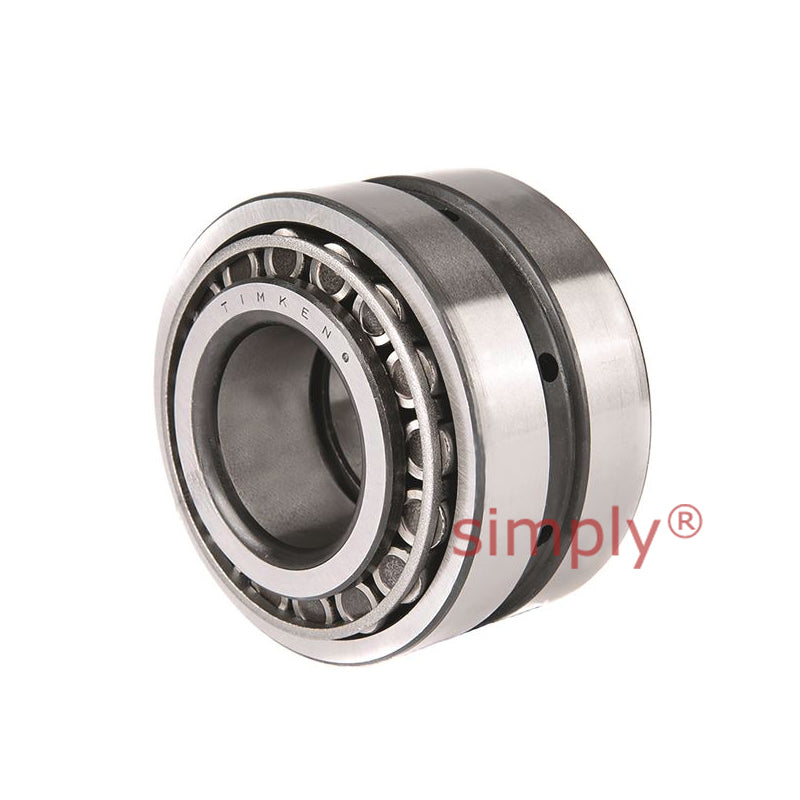

Timken EE241693/242377CD/X2S241693 TDO Double Outer Race Taper Roller Bearing 16.9375x23.75x6.285x4.125 inch
Timken EE241693/242377CD/X2S241693 TDO Double Outer Race Taper Roller Bearing 16.9375x23.75x6.285x4.125 inch
Out of stock
Description
Description

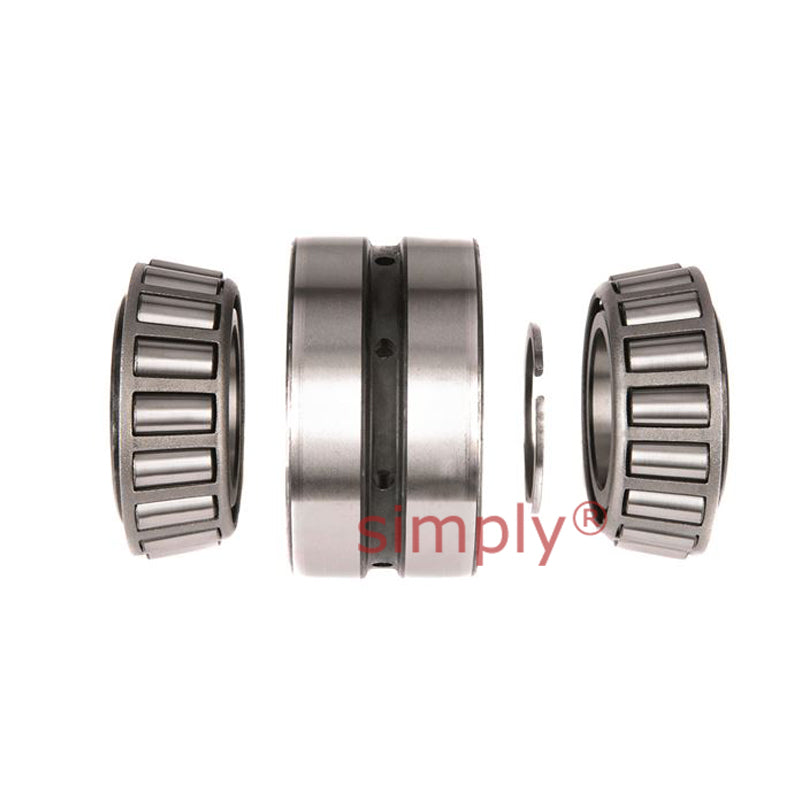

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 430.21mm = 16.9375 inch
- Outside Diameter:
- 603.25mm = 23.75 inch
- Width:
- 159.64mm = 6.285 inch
Technical
Technical
| d | 430.212mm = 16.9375 inch |
|---|---|
| D | 603.25mm = 23.75 inch |
| T | 159.639mm = 6.285 inch |
| C | 104.775mm = 4.125 inch |
| Dynamic (1) C1 | 1680000N |
| Factors (5) e | 0.52 |
| Factors (5) Y1 | 1.29 |
| Factors (5) Y2 | 1.92 |
| Dynamic (2) C90 | 250000N |
| Dynamic (2) Ca90 | 224000N |
| Dynamic (2) C90(2) | 435000N |
| Factors (5) K | 1.11 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 465mm = 18.31 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 561mm = 22.09 inch |
| Pin Ka | 22.1mm = 0.87 inch |
| Pin Kb | 13.5mm = 0.53 inch |
| G1 | 3350 |
| G2 | 551 |
| Cg | 0.2207 |
