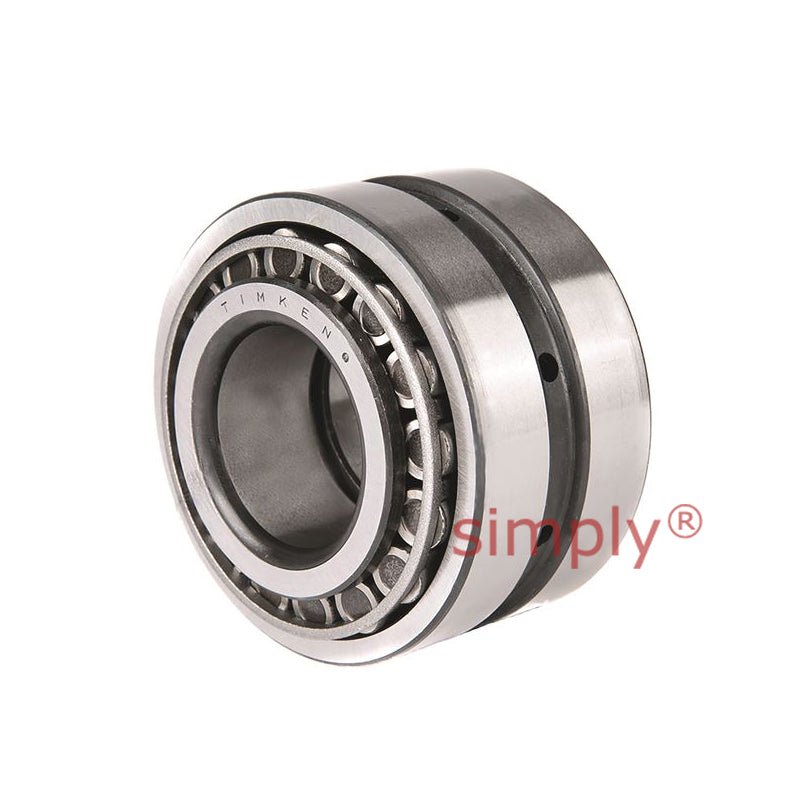

Timken EE231400/232026D/X1S231401 TDO Double Outer Race Taper Roller Bearing 14x20.25x6.125x4.25 inch
Timken EE231400/232026D/X1S231401 TDO Double Outer Race Taper Roller Bearing 14x20.25x6.125x4.25 inch
Out of stock
Description
Description

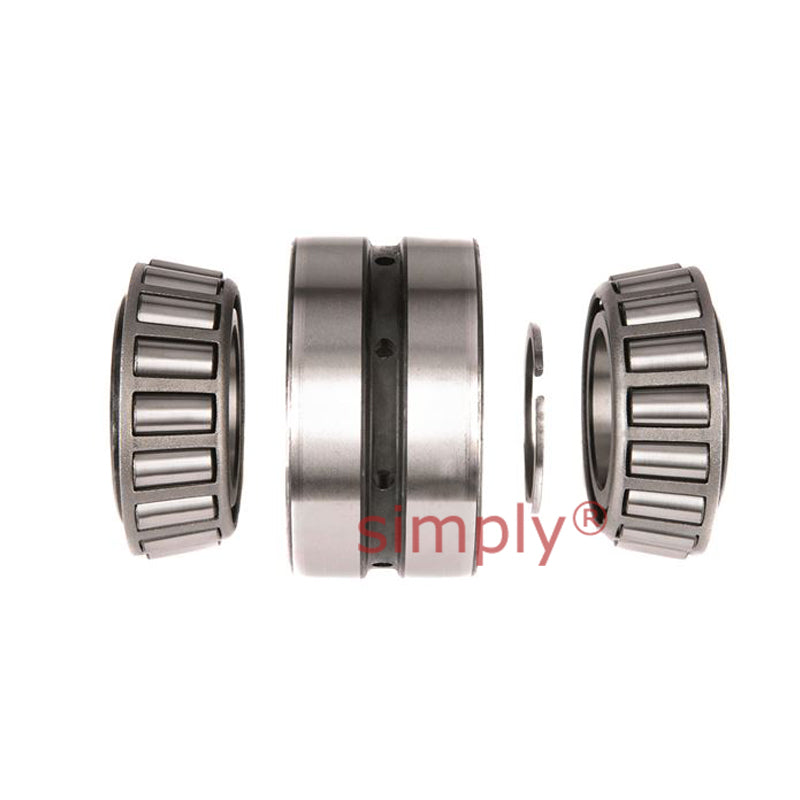

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 355.60mm = 14 inch
- Outside Diameter:
- 514.35mm = 20.25 inch
- Width:
- 155.58mm = 6.125 inch
Technical
Technical
| d | 355.6mm = 14 inch |
|---|---|
| D | 514.35mm = 20.25 inch |
| T | 155.575mm = 6.125 inch |
| C | 107.95mm = 4.25 inch |
| Dynamic (1) C1 | 1570000N |
| Factors (5) e | 0.44 |
| Factors (5) Y1 | 1.53 |
| Factors (5) Y2 | 2.28 |
| Dynamic (2) C90 | 233000N |
| Dynamic (2) Ca90 | 176000N |
| Dynamic (2) C90(2) | 406000N |
| Factors (5) K | 1.33 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 388mm = 15.28 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 481mm = 18.94 inch |
| G1 | 2390 |
| G2 | 366 |
| Cg | 0.1874 |
