SKU: EE221025D/221575-TIM

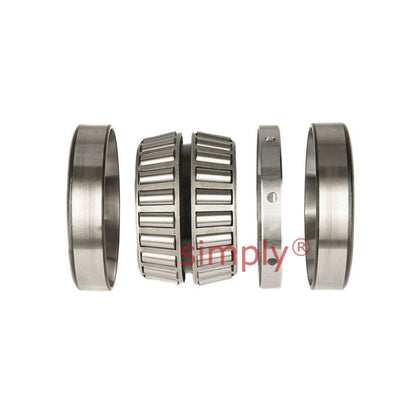

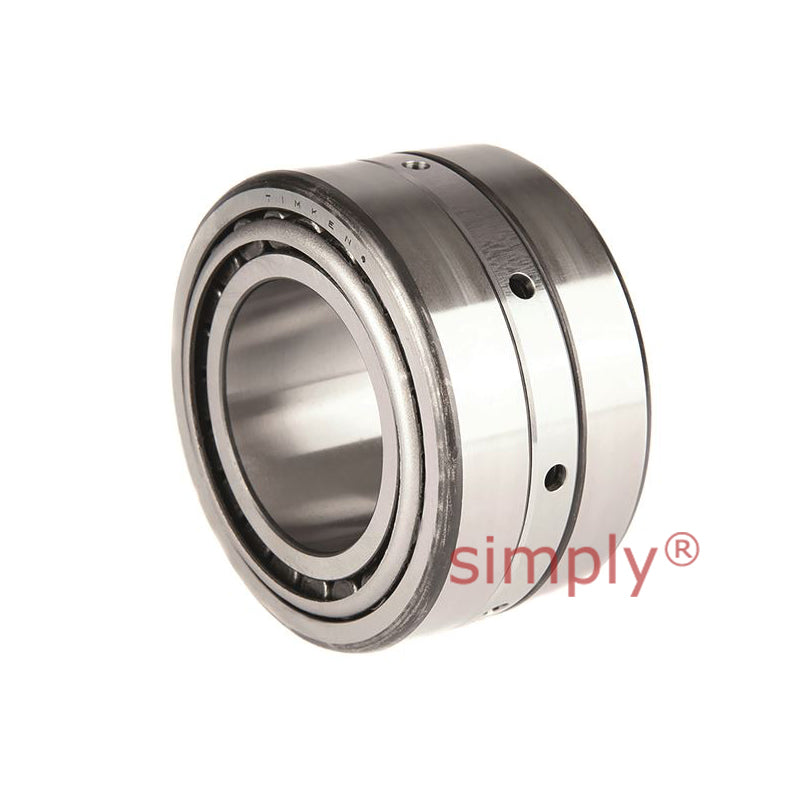

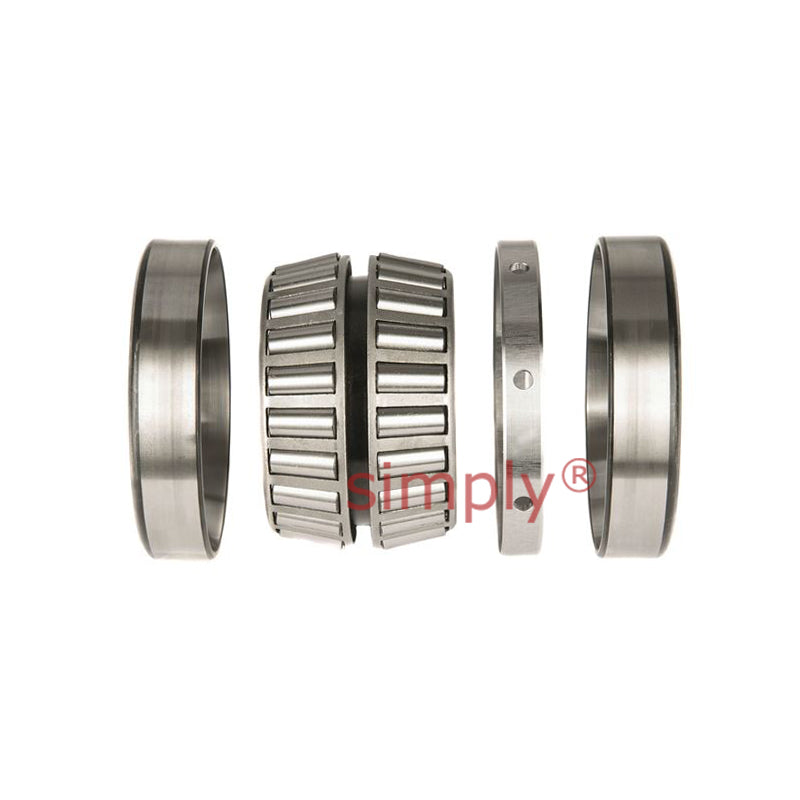

Timken EE221025D/221575 TDI Double Inner Race Taper Roller Bearing 10.25x15.75x4.6874x4.5 inch
Timken EE221025D/221575 TDI Double Inner Race Taper Roller Bearing 10.25x15.75x4.6874x4.5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 260.35mm = 10.25 (10-1/4) inch
- Outside Diameter:
- 400.05mm = 15.75 (15-3/4) inch
- Width:
- 119.06mm = 4.687 (4-11/16) inch
Technical
Technical
| d | 260.35mm = 10.25 inch |
|---|---|
| D | 400.05mm = 15.75 inch |
| T | 119.06mm = 4.6874 inch |
| C | 114.3mm = 4.5 inch |
| Dynamic (1) C1 | 1410000N |
| Factors (5) e | 0.39 |
| Factors (5) Y1 | 1.71 |
| Factors (5) Y2 | 2.55 |
| Dynamic (2) C90 | 210000N |
| Dynamic (2) Ca90 | 142000N |
| Dynamic (2) C90(2) | 366000N |
| Factors (5) K | 1.48 |
| Shaft max shaft fillet radius R (3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter da | 290mm = 11.42 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 366mm = 14.41 inch |
| G1 | 1320 |
| G2 | 207 |
| Cg | 0.1497 |
