• igubal EARM06 Right Hand Male Plastic Rod End 6mm Bore M6 Thread
1 1

SKU: EARM-06

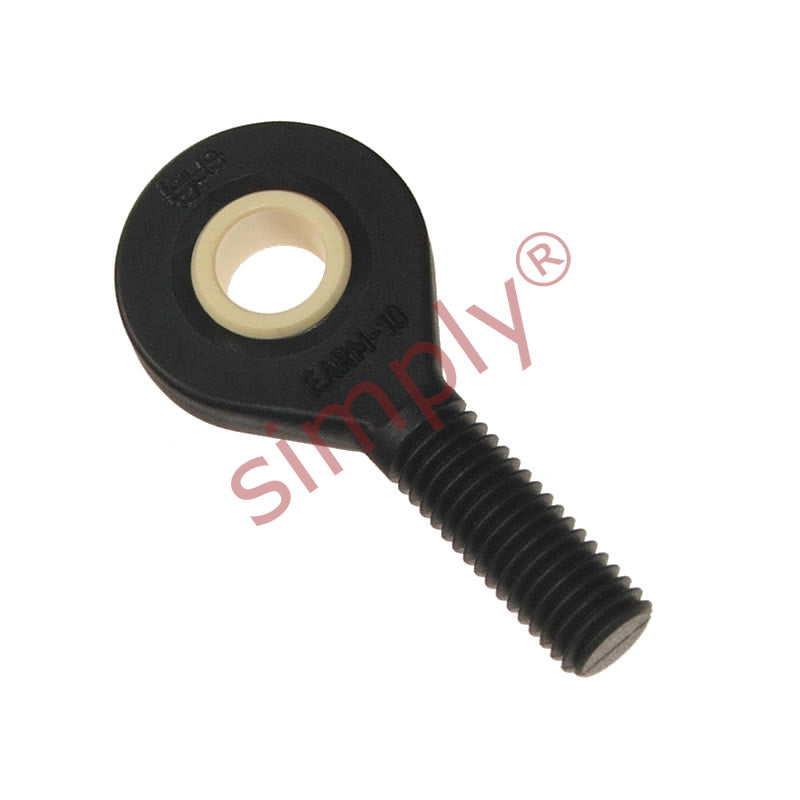

igubal EARM06 Right Hand Male Plastic Rod End 6mm Bore M6 Thread

igubal EARM06 Right Hand Male Plastic Rod End 6mm Bore M6 Thread
CHF 16.00 ex VAT
CHF 16.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 12.30
9+ CHF 11.61
19+ CHF 11.47
29+ CHF 11.34
39+ CHF 11.20
49+ CHF 11.06
59+ CHF 10.37
69+ CHF 10.23
79+ CHF 10.09
89+ CHF 9.95
99+ CHF 9.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EARM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M6
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
6mm
Technical
d1 6mm
d2 21mm
d3 M6
C1 4.4mm
B 6mm
h 36mm
l1 20mm
l2 46.5mm
Max pivot angle 27°
Max static tensile strength (short term) 850 N
Max static tensile strength (long term) 425 N
Max radial load (short term) 80 N
Max radial load (long term) 40 N
Min thread depth 14mm
Max torque outside thread 0.5 Nm
Max torque through ball 2.5 Nm
Weight 2.7 g
