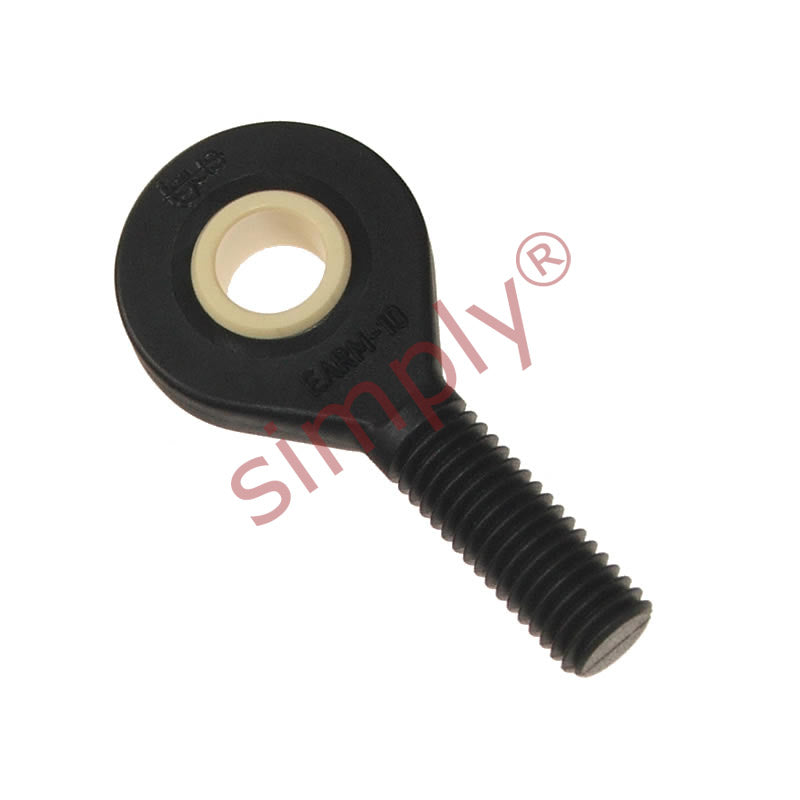

• igubal EALM12F Left Hand Male Plastic Rod End 12mm Bore M12x1.25 Thread - Allow 2-3 Days
1 1

SKU: EALM-12.F

igubal EALM12F Left Hand Male Plastic Rod End 12mm Bore M12x1.25 Thread - Allow 2-3 Days

igubal EALM12F Left Hand Male Plastic Rod End 12mm Bore M12x1.25 Thread - Allow 2-3 Days
CHF 17.00 ex VAT
CHF 17.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 12.96
9+ CHF 12.23
19+ CHF 12.09
29+ CHF 11.94
39+ CHF 11.80
49+ CHF 11.65
59+ CHF 10.92
69+ CHF 10.78
79+ CHF 10.63
89+ CHF 10.48
99+ CHF 10.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EALM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M12x1.25
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
12mm
Technical
d1 12mm
d2 34mm
d3 M12x1.25
C1 8mm
B 10mm
h 54mm
l1 29mm
l2 71mm
Max pivot angle 21°
Max static tensile strength (short term) 3100 N
Max static tensile strength (long term) 1550 N
Max radial load (short term) 300 N
Max radial load (long term) 150 N
Min thread depth 20mm
Max torque outside thread 6 Nm
Max torque through ball 25 Nm
Weight 14.3 g
