SKU: EAL802RS-FLURO

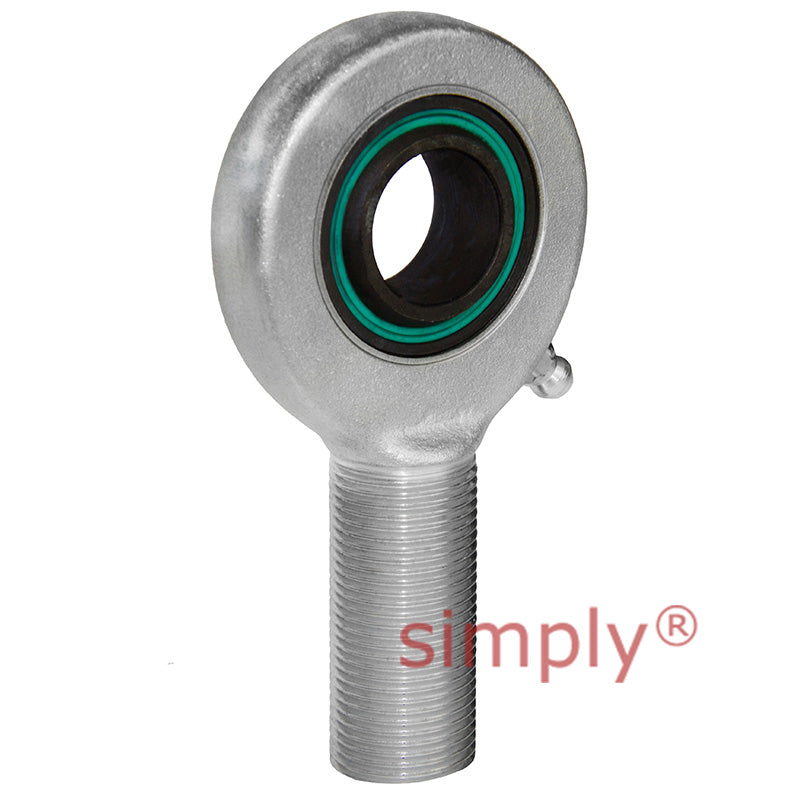

Fluro EAL802RS Left Hand Zinc Plated Steel / Steel Male Plain Rod End M64x4 Thread
Fluro EAL802RS Left Hand Zinc Plated Steel / Steel Male Plain Rod End M64x4 Thread
Out of stock
Share this product
Description
Description
Fluro EA (-2RS) Series Zinc Plated Steel Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel zinc plated, with steel on steel Spherical Plain Bearings which require lubrication. For use at high multidirectional loads and limited fitting dimensions
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M64x4
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 64x4mm
- Inside Diameter:
- 80mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 80mm |
|---|---|
| B | 55mm |
| M | 47mm |
| A | 180mm |
| F | 270mm |
| L | 360mm |
| O | 89.4mm |
| Thread Size G | M64x4 |
| GL | 140mm |
| Static Load Co | 689kN |
| Dynamic Load | 400kN |
| Approx weight | 12kg |
