SKU: EAL25D2RS-FLURO

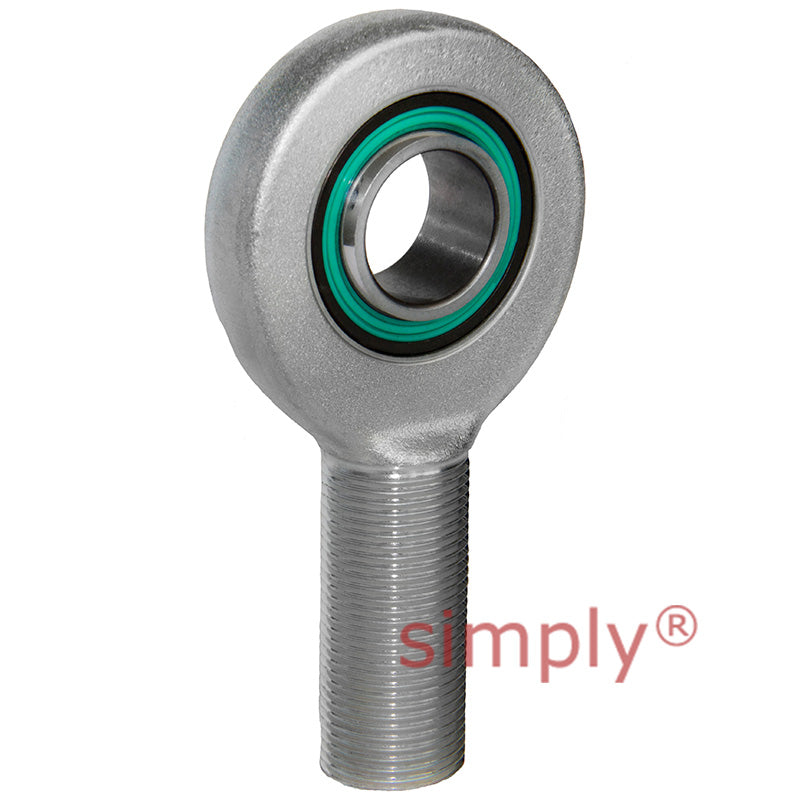

Fluro EAL25D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M24x2 Thread
Fluro EAL25D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M24x2 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 24x2mm
- Inside Diameter:
- 25mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 25mm |
|---|---|
| B | 20mm |
| M | 17mm |
| A | 64mm |
| F | 94mm |
| L | 126mm |
| O | 29.3mm |
| Thread Size G | M24x2 |
| GL | 53mm |
| Static Load Co | 92kN |
| Dynamic Load | 51kN |
| Approx weight | 0.56kg |
