SKU: ?DSG05PB-DURB
Durbal ?DSG05PB Maintenance Required Stainless Steel / Bronze Spherical Plain Bearing 5x13x8mm
Durbal ?DSG05PB Maintenance Required Stainless Steel / Bronze Spherical Plain Bearing 5x13x8mm
Out of stock
Share this product
Description
Description

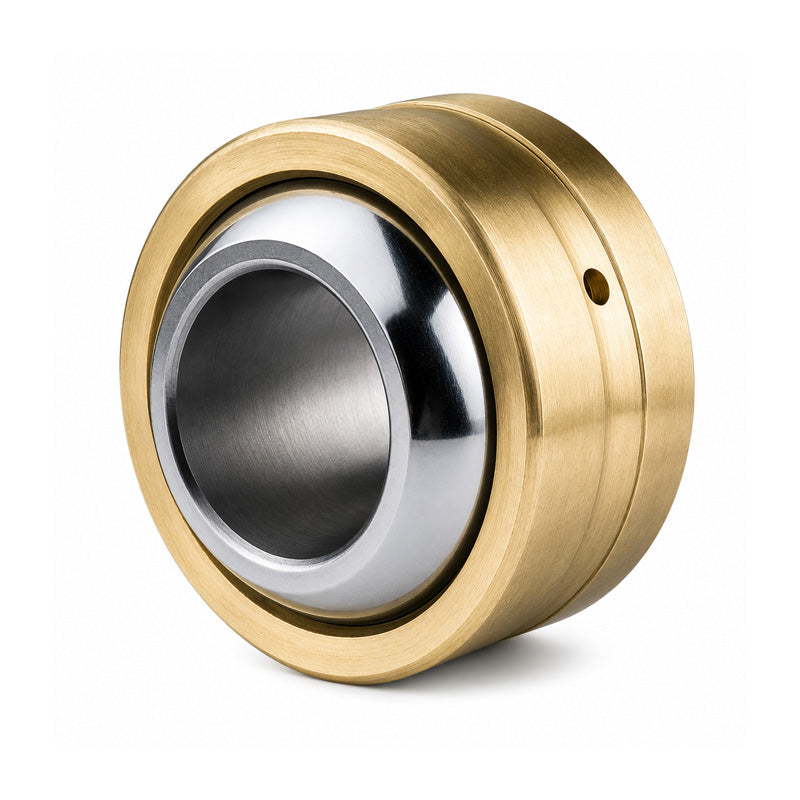

DURBAL Maintenance Required Stainless Steel Spherical-Plain Bearing - Sliding Combination Stainless Steel/Bearing Brass: These spherical bearings consist of a hardened, polished, stainless steel joint ball and a bearing brass outer ring with oil groove and drill holes. For use with high impact loads and alternating stresses in radial and axial directions. Preferred in situations with large swivelling movements. Temperature range: -40 deg C to +110 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 5mm
- Material:
- Bronze Lined
Technical
Technical
| d | 5mm |
|---|---|
| d1 | 7.7mm |
| D | 13mm |
| dk | 11.1mm |
| B | 8mm |
| C | 6mm |
| rs | 0.3mm |
| r1s | 1.2mm |
| Tilt angle α | 13 Deg |
| Weight | 0.007 kg |
| Basic load rating dyn C | 6.4 kN |
| Basic load rating stat Co | 15 kN |
| CN | 20-60 µm |
