SKU: DGK90SK-DURB

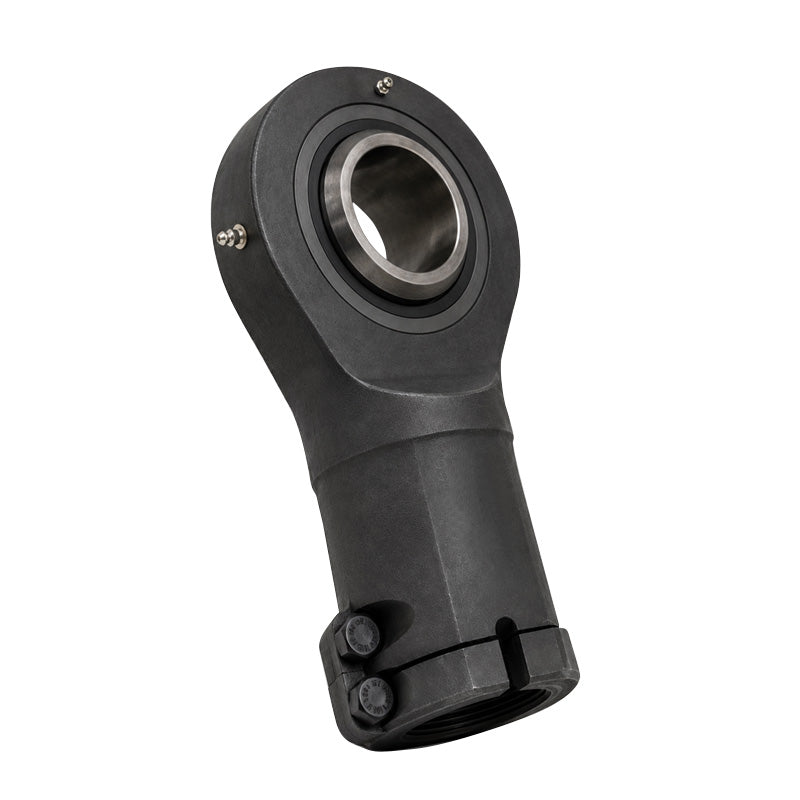

Durbal DGK90SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M100x3 Thread
Durbal DGK90SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M100x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M100x3
- Thread M / F:
- Female
- Inside Diameter:
- 70mm
Technical
Technical
| d | 90mm |
|---|---|
| d1 | 98.1mm |
| d2 | 206mm |
| d4 | 150mm |
| d5 | 180mm |
| dk | 115mm |
| G (Thread) | M100x3mm |
| B | 65mm |
| C1 | 60mm |
| C2 | 60mm |
| l3 | 140mm |
| l4 | 363mm |
| l7 | 90mm |
| h1 | 250mm |
| tilt angle α | 5 deg |
| weight | 28kg |
| basic load rating dyn C | 392 kN |
| basic load rating stat Co | 1040 kN |
| radial clearance CN | 8-165 µm |
