SKU: DGK40SK-DURB

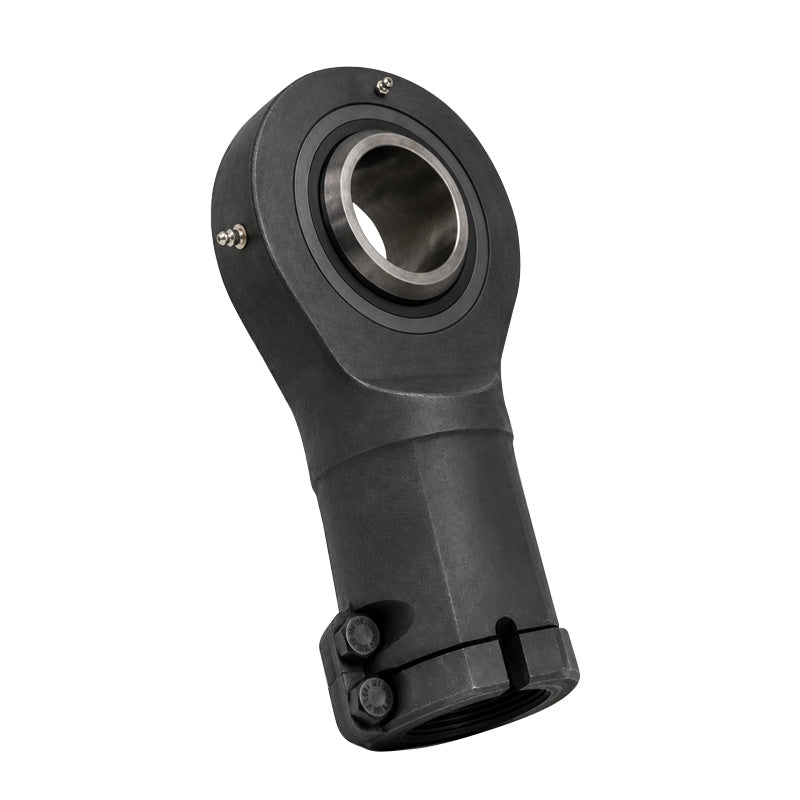

Durbal DGK40SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M39x3 Thread
Durbal DGK40SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M39x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M39x3
- Thread M / F:
- Female
- Inside Diameter:
- 25mm
Technical
Technical
| d | 40mm |
|---|---|
| d1 | 45mm |
| d2 | 94mm |
| d4 | 55mm |
| d5 | 78mm |
| dk | 53mm |
| G (Thread) | M39x3mm |
| B | 35mm |
| C1 | 28mm |
| C2 | 33mm |
| l3 | 55mm |
| l4 | 155mm |
| l7 | 45mm |
| h1 | 105mm |
| tilt angle α | 7 deg |
| weight | 2.4kg |
| basic load rating dyn C | 80 kN |
| basic load rating stat Co | 236 kN |
| radial clearance CN | 8-120 µm |
