SKU: DGK25SK-DURB

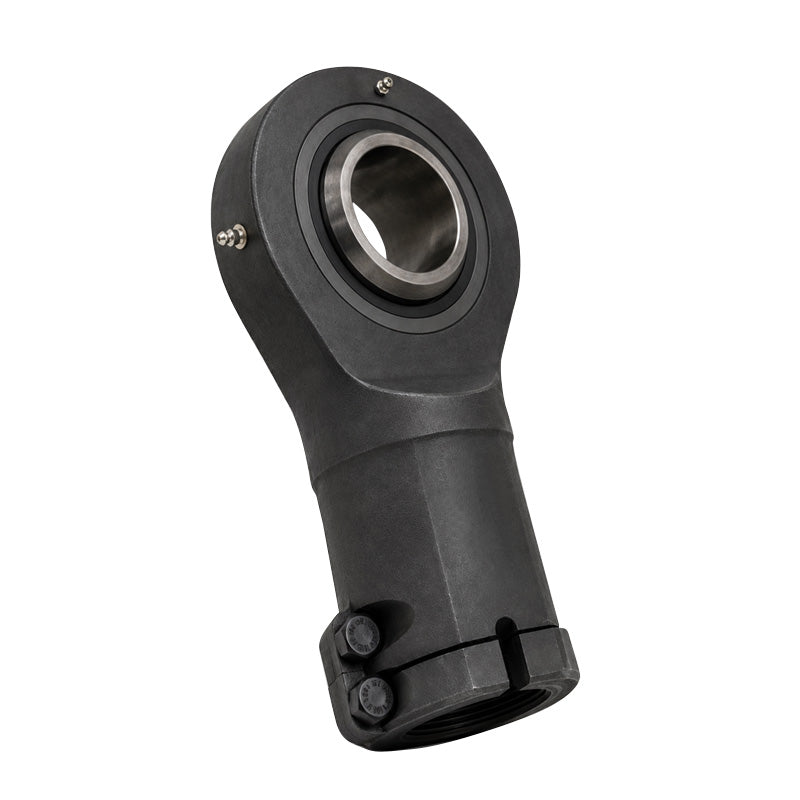

Durbal DGK25SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M18x2 Thread
Durbal DGK25SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M18x2 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M18x2
- Thread M / F:
- Female
- Inside Diameter:
- 12mm
Technical
Technical
| d | 25mm |
|---|---|
| d1 | 29.3mm |
| d2 | 56mm |
| d4 | 28mm |
| d5 | 48mm |
| dk | 35.5mm |
| G (Thread) | M18x2mm |
| B | 23mm |
| C1 | 20mm |
| C2 | 21mm |
| l3 | 30mm |
| l4 | 95mm |
| l7 | 25mm |
| h1 | 65mm |
| tilt angle α | 8 deg |
| weight | 0.7kg |
| basic load rating dyn C | 38.4 kN |
| basic load rating stat Co | 60.8 kN |
| radial clearance CN | 8-100 µm |
