SKU: DGEZ44ES-DURB

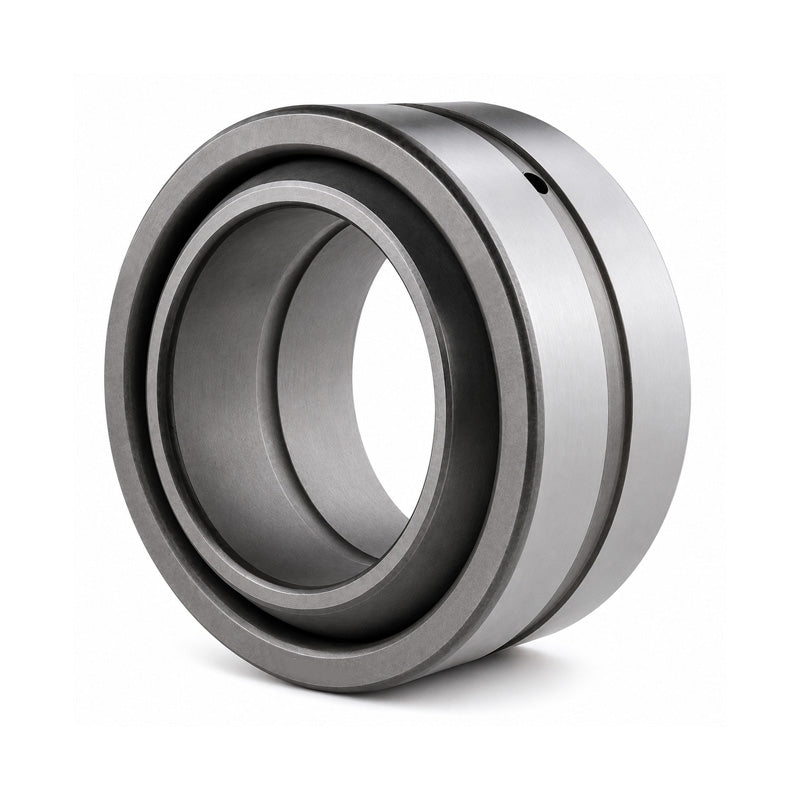

Durbal DGEZ44ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 1-3/4x2x2-13/16 inch
Durbal DGEZ44ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 1-3/4x2x2-13/16 inch
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| d | 44.45mm = 1-3/4inch |
|---|---|
| d1 | 50.7mm |
| D | 71.438mm |
| dk | 63.9mm |
| B | 33.887mm |
| C | 33.325mm |
| rs | 0.6mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 0.641kg |
| basic load rating dyn C | 170 kN |
| basic load rating stat Co | 510 kN |
| CN | 80-180 µm |
