SKU: DGEZ22ES-DURB

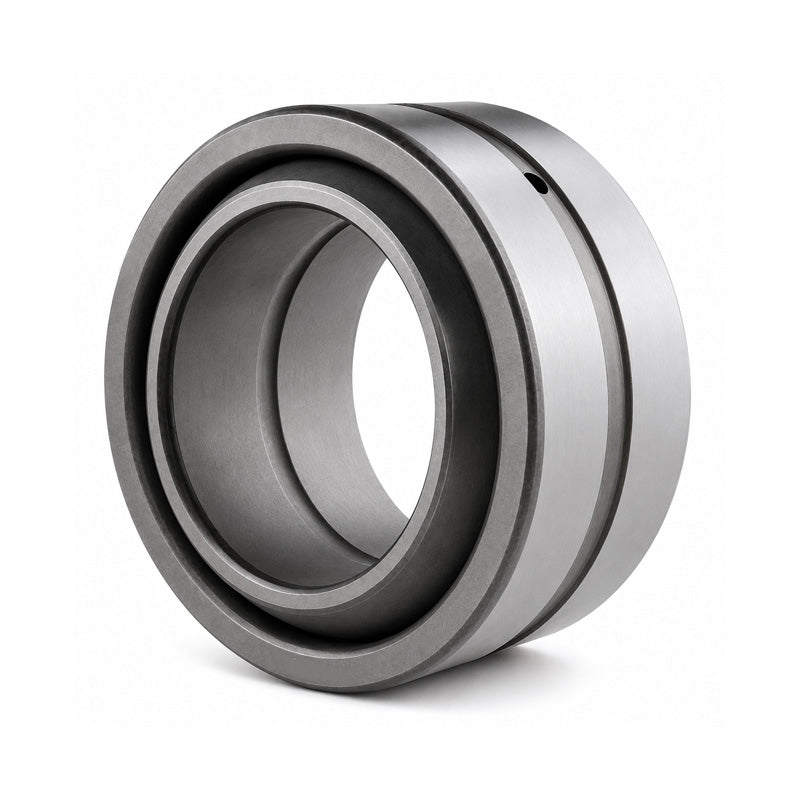

Durbal DGEZ22ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 7/8x1x1-7/16 inch
Durbal DGEZ22ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 7/8x1x1-7/16 inch
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical
| d | 22.225mm = 7/8inch |
|---|---|
| d1 | 25.4mm |
| D | 36.513mm |
| dk | 32mm |
| B | 19.431mm |
| C | 16.662mm |
| rs | 0.3mm |
| r1s | 0.6mm |
| tilt angle α | 6 deg |
| weight | 0.085kg |
| basic load rating dyn C | 42 kN |
| basic load rating stat Co | 127 kN |
| CN | 80-180 µm |
