SKU: DGEZ107ES-DURB
Durbal DGEZ107ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 4-1/4x4-53/64x6-5/8 inch
Durbal DGEZ107ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 4-1/4x4-53/64x6-5/8 inch
Out of stock
Share this product
Description
Description

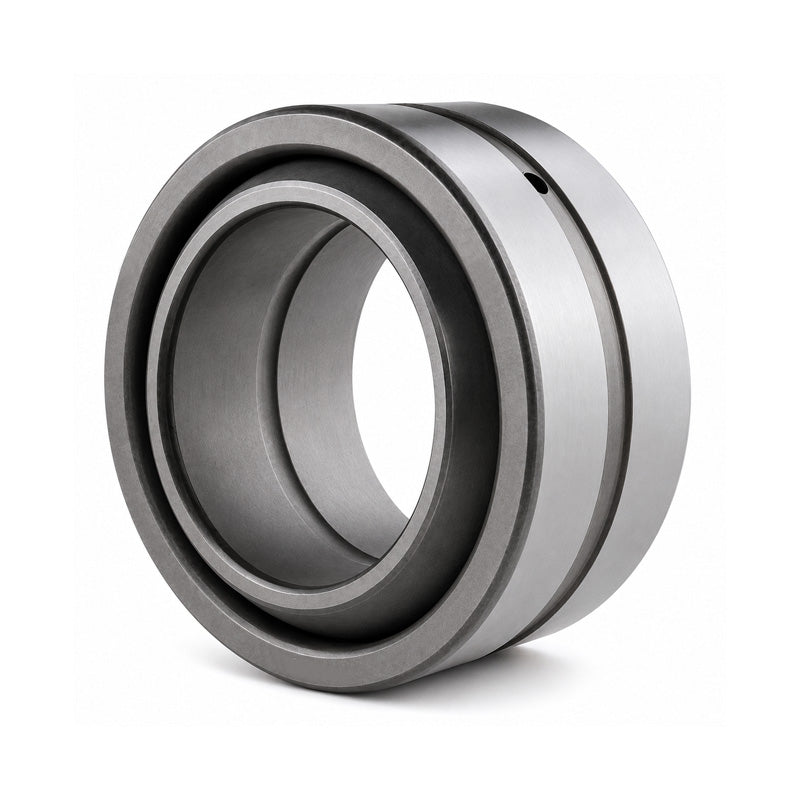

DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 107.95mm = 4.25 (4-1/4) inch
Technical
Technical
| d | 107.95mm = 4-1/4inch |
|---|---|
| d1 | 122.8mm |
| D | 168.28mm |
| dk | 154.9mm |
| B | 94.463mm |
| C | 80.95mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 8.41kg |
| basic load rating dyn C | 1000 kN |
| basic load rating stat Co | 2900 kN |
| CN | 130-230 µm |
