SKU: DGE45ES-2RS-DURB

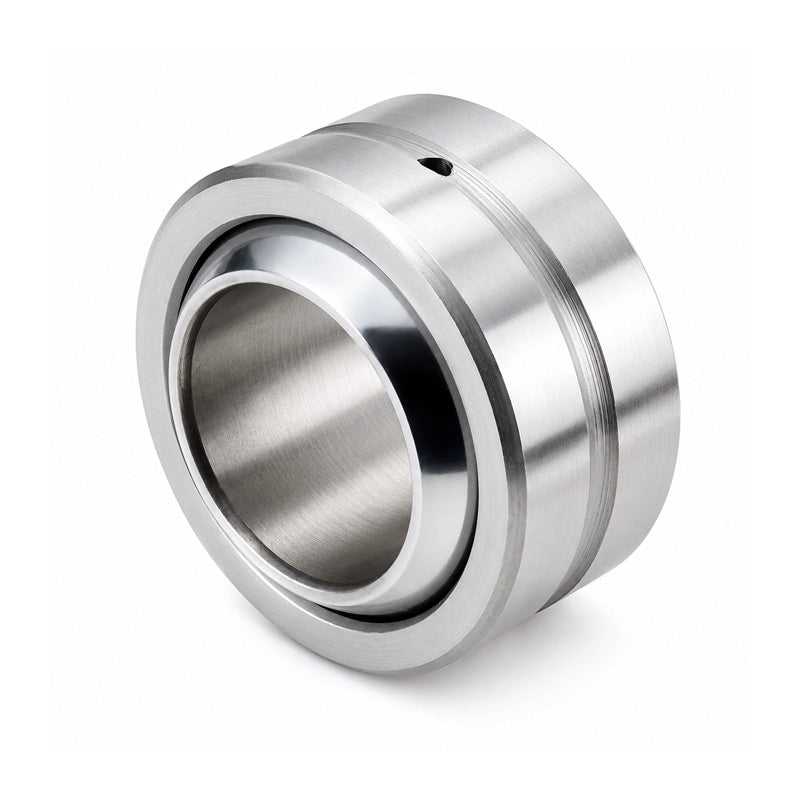

Durbal DGE45ES-2RS Maintenance Required Steel / Steel Spherical Plain Bearing with Seals 45x68x32mm
Durbal DGE45ES-2RS Maintenance Required Steel / Steel Spherical Plain Bearing with Seals 45x68x32mm
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing with Seals - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes and 2RS lip seals on both sides. (Outer ring has a split from size 15) For use with high and alternating loads.Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 45mm
Technical
Technical
| d | 45mm |
|---|---|
| d1 | 50mm |
| D | 68mm |
| dk | 60mm |
| B | 32mm |
| C | 25mm |
| rs | 0.6mm |
| r1s | 1mm |
| tilt angle α | 7 deg |
| weight | 0.4kg |
| basic load rating dyn C | 127 kN |
| basic load rating stat Co | 640 kN |
| CN | 60-120 µm |
