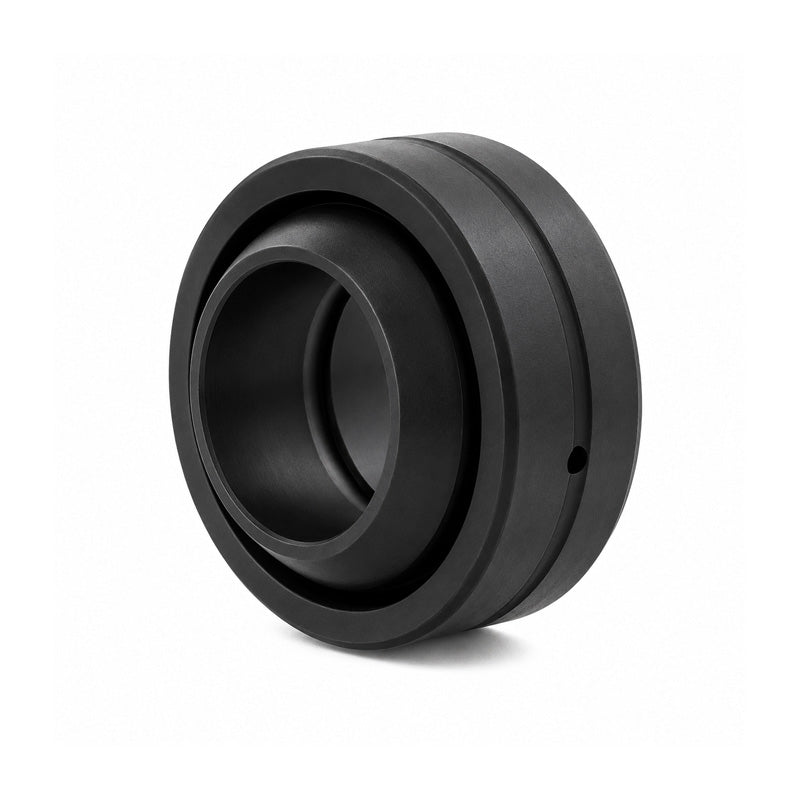

Durbal DGE440ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 440x600x218mm
Durbal DGE440ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 440x600x218mm
Equivalent to: GE440DO GE440ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 440mm
Technical
Technical
| d | 440mm |
|---|---|
| d1 | 472mm |
| D | 600mm |
| dk | 520mm |
| B | 218mm |
| C | 185mm |
| rs | 1.5mm |
| r1s | 4mm |
| tilt angle α | 3.9 deg |
| weight | 193kg |
| basic load rating dyn C | 8177 kN |
| basic load rating stat Co | 40885 kN |
| CN | 145-285 µm |
