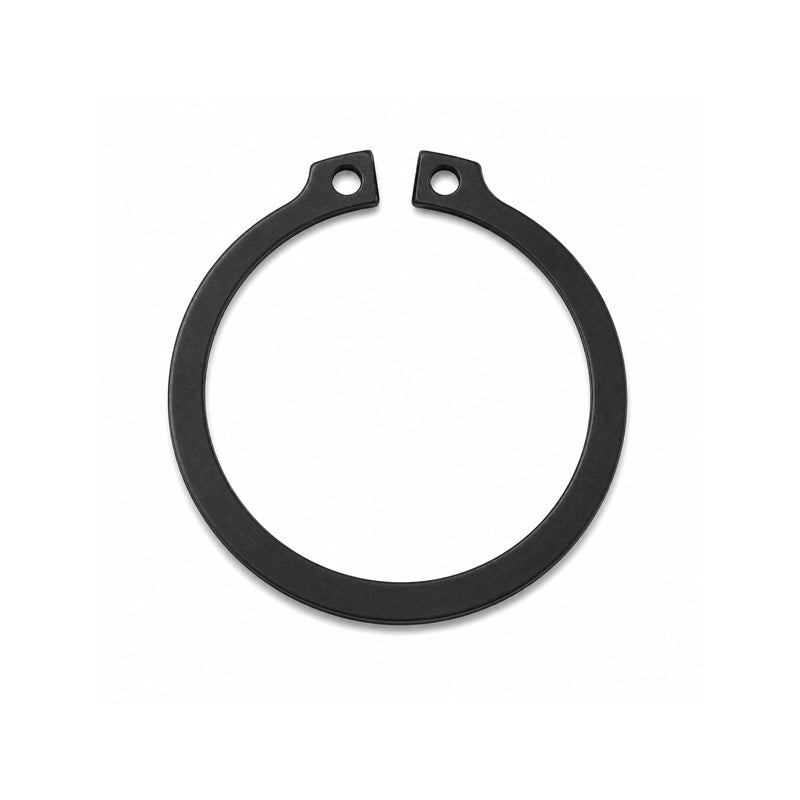

Heavy Duty External Circlip for 22mm Shaft Diameter Un-Sprung Diameter 20.5mm

Heavy Duty External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
DIN 471
Benefits: Cost effective replacement, durable, removable.

Brand / Quality:

Simply Circlips - Economy Quality

Inside Diameter:

20.5mm

Material:

Sprung Carbon Steel

Shaft Size:

22mm

Thickness:

1.75mm

Groove Diameter:

21mm
