Internal Circlip for 38mm Bore Diameter Un-Sprung Diameter 40.8mm
New

SKU: D1300-038

Internal Circlip for 38mm Bore Diameter Un-Sprung Diameter 40.8mm

CHF 1.00 ex VAT
CHF 1.00
ex VAT
Equivalent to: D1300-038
Not in stock

Quantity Price Breaks

10 CHF 0.89
20 CHF 0.84
50 CHF 0.83
100 CHF 0.82
500 CHF 0.81
1000 CHF 0.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Internal Circlip for 38mm Bore Diameter Un-Sprung Diameter 40.8mm
SKU: D1300-038

Internal Circlip for 38mm Bore Diameter Un-Sprung Diameter 40.8mm

CHF 1.00 ex VAT
CHF 1.00
ex VAT

Description

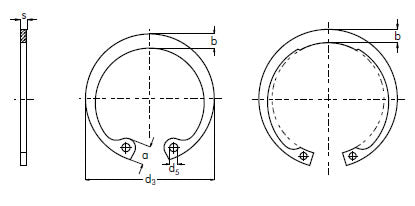

Internal Circlips: The most common form of axially fitted circlips for bores with pre-machined grooves.
These clips serve as retainers for items such as bearings where it may be impractical to create a dedicated machined step to locate them, either as a result of a design constraint or just down to cost. The circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capability. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
Benefits: Cost effective replacement, durable, removable.
Safety: Circlips are compressed or squeezed together for installation, they can fly off at high speeds if extreme care isn't taken. It is recommended for your own safety to wear safety glasses when fitting.
