SKU: CUC216

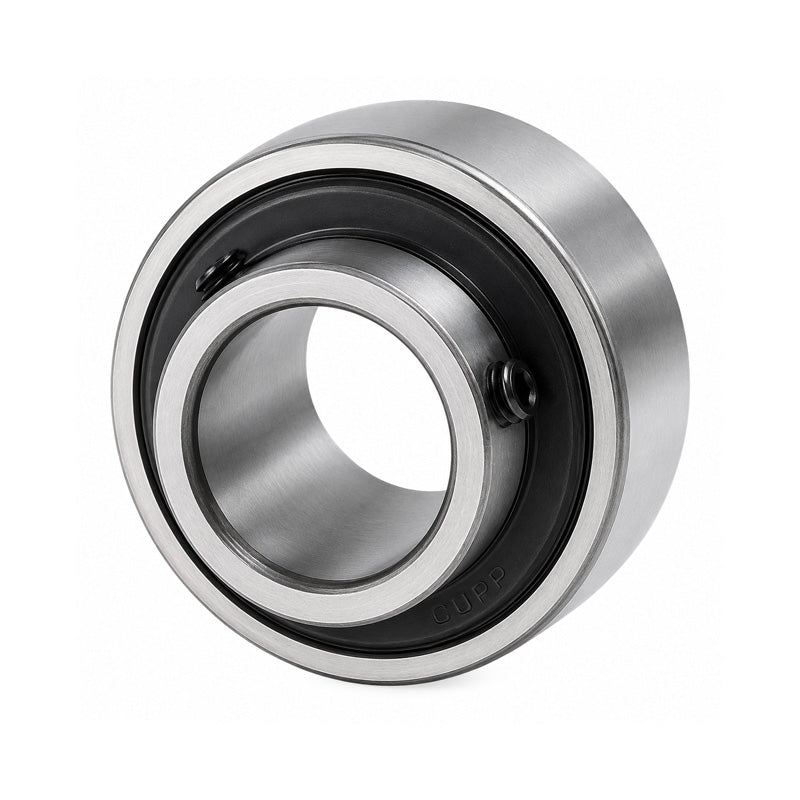

CUC216 Metric Cylindrical Bearing Insert with 80mm Bore 140mm Outside Dia
CUC216 Metric Cylindrical Bearing Insert with 80mm Bore 140mm Outside Dia
Equivalent to: UR216 RB216
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| Bi | 82.6mm |
| Be | 32mm |
| N | 33.3mm |
| M | 49.3mm |
| G | 12mm |
| ds | M12x1.5, 7/16-20UNF |
| Dynamic Load | 71500 N |
| Static Load | 54200 N |
| Weight | 2.8 kg |
