SKU: CUC213-40

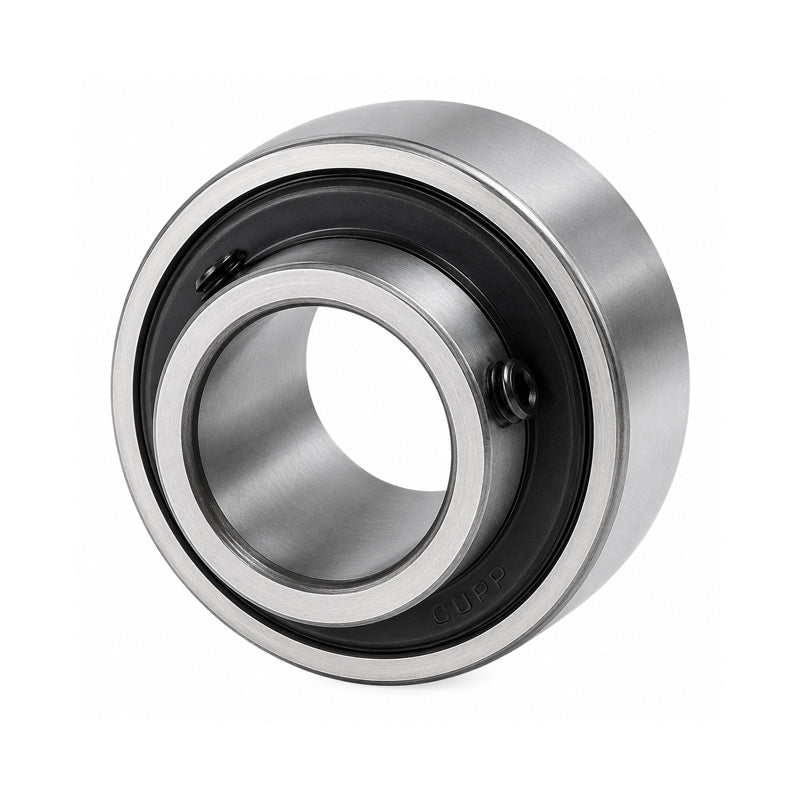

CUC213-40 Imperial Cylindrical Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
CUC213-40 Imperial Cylindrical Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
Equivalent to: UR213-40 RB213-40
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 120mm
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| D | 120mm |
| Bi | 65.1mm |
| Be | 28mm |
| N | 25.4mm |
| M | 39.7mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 57500 N |
| Static Load | 40000 N |
| Weight | 1.94 kg |
