SKU: CSA.211

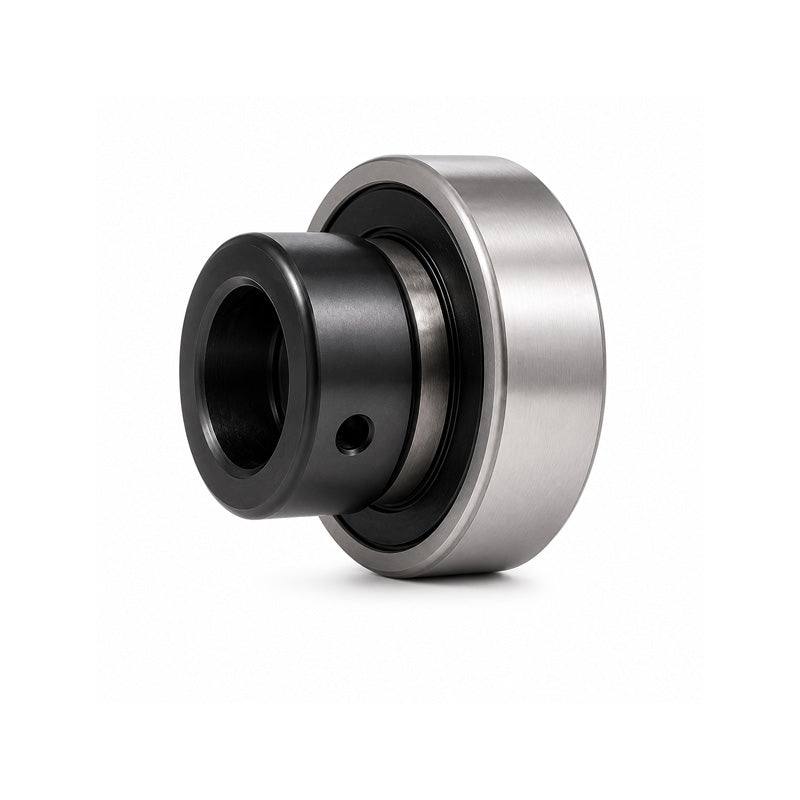

CSA211 Metric Bearing Insert with Locking Collar 55mm Bore 100mm Outside Dia
CSA211 Metric Bearing Insert with Locking Collar 55mm Bore 100mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Style:
- CSA
Technical
Technical
| d | 55mm |
|---|---|
| Be | 24mm |
| D | 100mm |
| z | 32.4mm |
| n | 12mm |
| m | 20.4mm |
| Bi | 48.4mm |
| k | 76.2mm |
| H | 20.7mm |
| G | 8mm |
| h | 7.2mm |
| Grub screw | M10X1.0 |
| Weight | 0.87 kg |
| Dynamic load | 4400 kgf |
| Static load | 3000 kgf |
