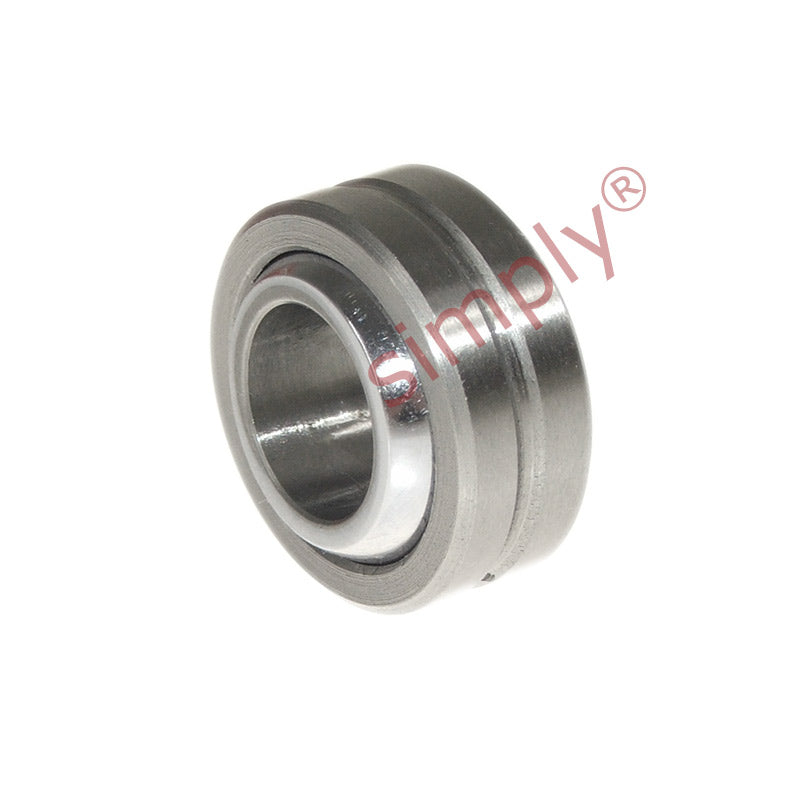

• COM03T PTFE Lined Imperial Spherical Plain Bearing 3/16 inch Bore
1 1

SKU: COM03T-EU

COM03T PTFE Lined Imperial Spherical Plain Bearing 3/16 inch Bore

COM03T PTFE Lined Imperial Spherical Plain Bearing 3/16 inch Bore
CHF 10.00 ex VAT
CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 7.99
19+ CHF 7.54
29+ CHF 7.45
39+ CHF 7.36
49+ CHF 7.27
74+ CHF 7.18
99+ CHF 6.73
199+ CHF 6.64
249+ CHF 6.55
499+ CHF 6.46
999+ CHF 6.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
4.76mm = 0.187 (3/16) inch
Outside Diameter:
14.29mm = 0.563 (9/16) inch
Width:
7.14mm = 0.281 (9/32) inch

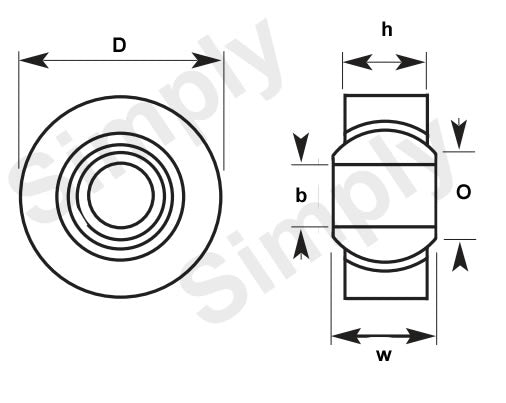

Technical
b 3/16 inch
w 9/32 inch
h 9/32 inch
D 9/16 inch
O 0.293 inch
Static load 14464 N
